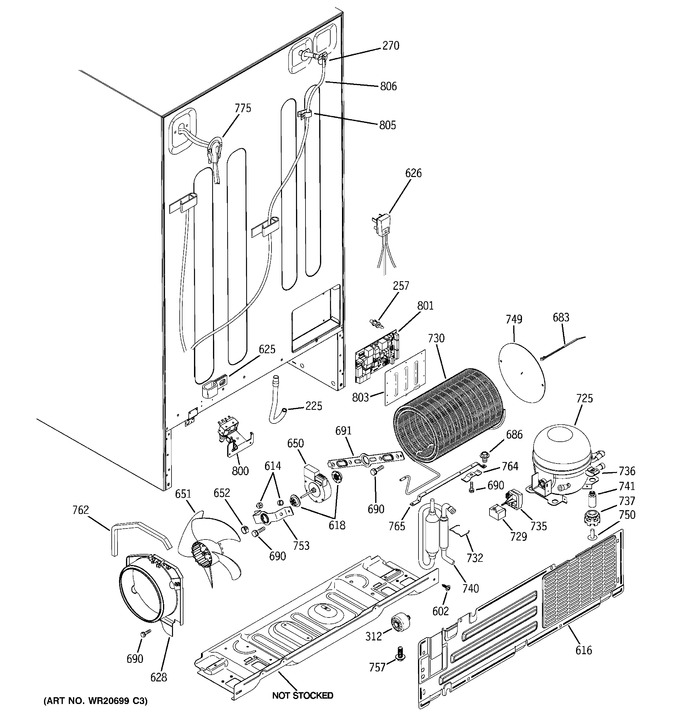

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
225	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 36.53
257	WR02X10663		Stand Off		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
312	WG03L06838		Wheel Mobility   (Replaces: WR02X10695)				$ 19.06
602	WR01X10592		Scr 1/4-14 Ab Ihw 3/4 S		Appelez-nous	-
614	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR82X10110		Cover Access		Appelez-nous	-
618	WR01A00579		Grommet Evap Fan   (Replaces: WR02X11331)				$ 3.97
625	WR01X10684		Clamp Cable		Appelez-nous	-
626	WR23X108		Power Cord		Appelez-nous	-
628	WR01L04391		Shroud Condenser   (Replaces: WR17X12668)				$ 26.20
650	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.97
683	WR02X11027		Wire Tie		Appelez-nous	-
686	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WR87X10182		Compressor Asm Mei		Appelez-nous	-
729	WR01F02043		Capacitor   (Replaces: WR62X79)			Immediately	$ 17.17
730	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
732	WR02X11999		Clip Retainer Mei		Appelez-nous	-
735	WR07X10143		Overload Ptcr Combo		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WG03A03157		P/s Dryer Kit R134a   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
749	WR17X11039		Baffle Cond Air		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
757	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
762	WR14X10053		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10763		Bracket Condenser Bar		Appelez-nous	-
775	WR17X10796		Cover Water Line		Appelez-nous	-
800	WR57X10040		Water Valve Assy W/o Gua				$ 71.10
801	WR55X11061		Board Asm Main Control		Appelez-nous	-
803	WR02X12025		Main Board Enclosure Asm		Appelez-nous	-
805	WR02X12265		Clamp Tube		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 15.88
	WR01A00219		Glide Bucket Lh Disp				$ 9.73
	WR01F00222		Board Asm Main Control				$ 91.86
	WR01F00791		Filter Asm. And Tube			Immediately	$ 23.80
	WR01F04639		Motor Dc Evap Fan Asm   (Replaces: WR01F01624)			Immediately	$ 87.98
	WR01F01730		Sensor Temp Ff			Immediately	$ 15.72
	WR01F02845		Connecteur			Immediately	$ 19.06
	WG03A00379		Gas Noise Service Fix			Immediately	$ 84.76
	WR01F03675		Interface Dispenser Asm				$ 101.58
	WR01L01332		Door Foam Asm Ff				$ 219.85
	WR01L02180		Gasket Door Fz				$ 45.68
	WR01L02559		Icemaker Asm   (Replaces: WR01L02566)			Immediately	$ 136.45
	WR01L02982		Mobility Front Asm			Immediately	$ 19.06
	WR01L08991		Door Foam Asm Fz				$ 298.87
	WR01F02867		Thermostat Def			Immediately	$ 45.00
	WR01F00849		Grommet   (Replaces: WG03A00867)			Immediately	$ 3.97
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 94.13
	WG03F00773		Heater Harness Def Asm			Immediately	$ 161.80
	PMMWF		Filtre D''eau   (Replaces: WG03F00835)			Immediately	$ 81.88
	WR01A00003		Cover & Damper Asm			Immediately	$ 190.78
	WR01A00218		Glide Bucket Rh Disp				$ 19.53
