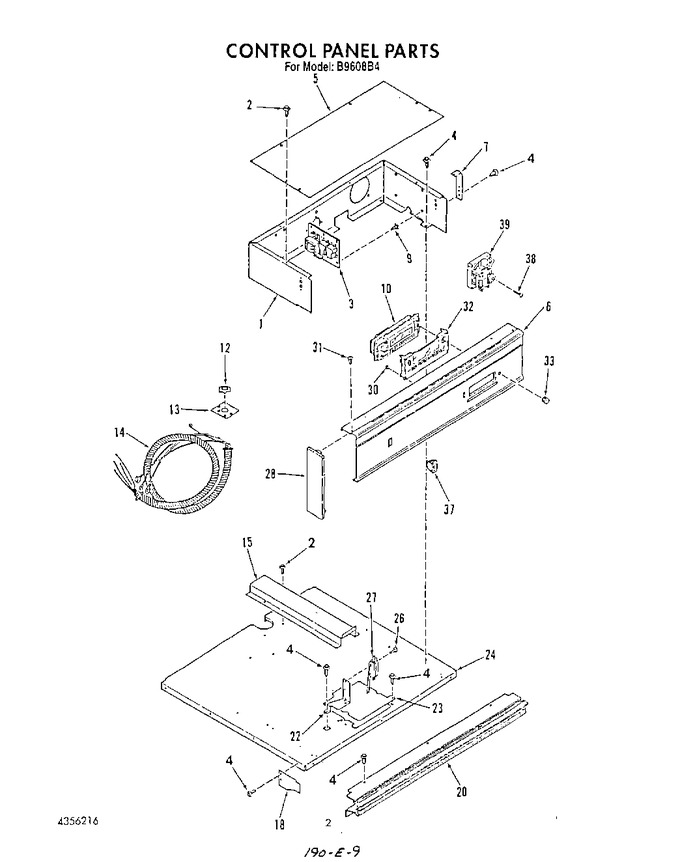

02 - Control Panel


03 - Oven Door Lock


04 - Oven


05 - Cabinet Trim Filler


06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338552		Housing, Control		Appelez-nous	-
2	W10850756		Screw No.10-32x3/8   (Replaces: 4323777)				$ 7.38
3	4338265		Relay Board		Appelez-nous	-
4	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
5	4338050		Top Cover, Control Housing		Appelez-nous	-
6	4337721		Control Panel (black Model)		Appelez-nous	-
6	4338599		Control Panel (white Model)		Appelez-nous	-
7	4338562		Bracket-control Panel		Appelez-nous	-
9	4336562		Spacer		Appelez-nous	-
10	4342971		Control, Clock/oven		Appelez-nous	-
12	4324132		Nut (for No.14)		Appelez-nous	-
13	4327503		Plate (for No.14)		Appelez-nous	-
14	4337730		Harness-conduit		Appelez-nous	-
15	4335478		Cover, Wire		Appelez-nous	-
18	4337717		Heat Shield, (lt/rt)		Appelez-nous	-
20	4338052		Trim-control Panel (black Model)		Appelez-nous	-
20	4342949		Trim-control Panel (white Model)		Appelez-nous	-
22	4337430		Bracket, Micro Switch		Appelez-nous	-
23	4342735		Cover Plate, Lock		Appelez-nous	-
24	4338047		Top, Cabinet		Appelez-nous	-
26	4335220		Screw No.6-32x7/8		Appelez-nous	-
27	4337399		Micro Switch		Appelez-nous	-
28	4337791		End Cap (right-black)		Appelez-nous	-
28	4338474		End Cap (left-white)		Appelez-nous	-
28	4338475		End Cap (right-white)		Appelez-nous	-
28	4337790		End Cap (left-black)		Appelez-nous	-
30	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-
31	4338600		Screw (white Model)		Appelez-nous	-
31	4333427		Screw (black Model)		Appelez-nous	-
32	4342950		Lens, Clock				$ 99.57
33	4338513		Knob, Clock (black Model)		Appelez-nous	-
33	4338635		Knob, Clock (white Model)		Appelez-nous	-
37	4338536		Switch (white Model)		Appelez-nous	-
37	WP4314961		Switch (black Model)   (Replaces: 4337275)				$ 84.56
38	4323953		Screw No.10-32x1``		Appelez-nous	-
39	4337808		Fan Assembly		Appelez-nous	-
