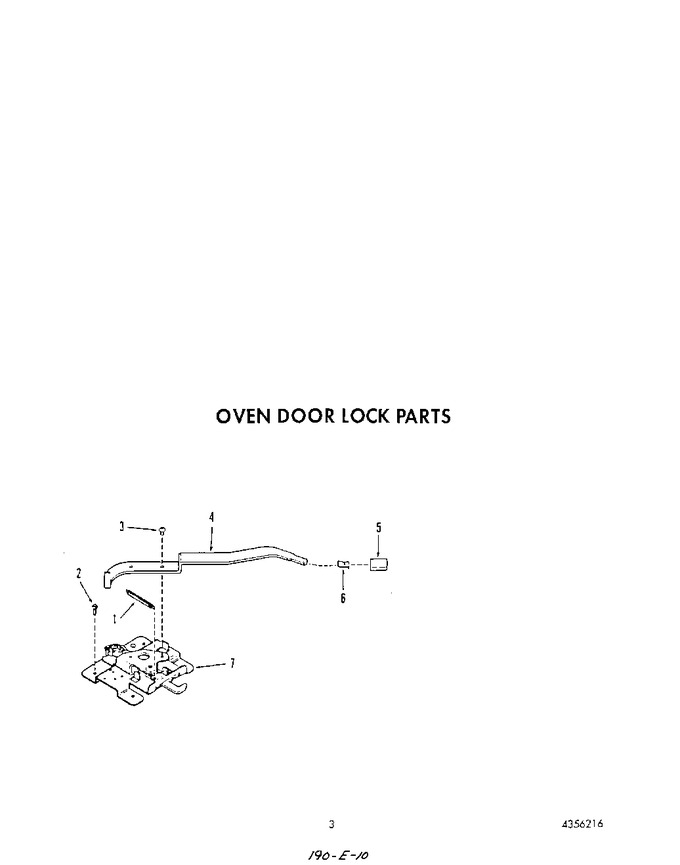

03 - Oven Door Lock


04 - Oven


05 - Cabinet Trim Filler


06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4331536		Spring		Appelez-nous	-
2	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
3	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
4	4338045		Handle, Lock		Appelez-nous	-
5	4337568		Knob, Lock Handle (black Model)		Appelez-nous	-
5	4342730		Knob, Lock Handle (white Model)		Appelez-nous	-
6	4335705		Clip, Knob		Appelez-nous	-
7	4337490		Lock Assembly		Appelez-nous	-
