SELECT A DIAGRAM

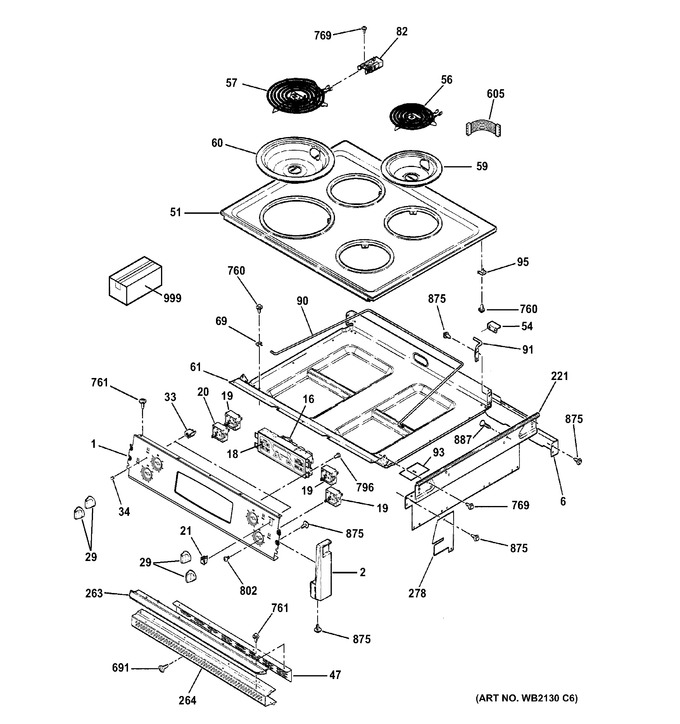

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 229C6497P001 | Label Wire Diagram |
|
- | |||||
| 1 | WB36X20136 | Panel Cntl ( Scr -bk) |
|
- | |||||
| 2 | WB07T10531 | Cap End Rt (bk) |
|
- | |||||
| 2 | WB07T10532 | Cap End Lt (bk) |
|
- | |||||
| 6 | WB37K5022 | Panel Back |
|
- | |||||
| 16 | WB27T10480 | Control Ovn Erc3b |
|
- | |||||
| 18 | WB07X20137 | Plate Clock (bk) |
|
- | |||||
| 19 | WG02F00292 | Control Infinite Switch (Replaces: WB24T10029) |
|
Immediately | $ 60.36 | ||||
| 20 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 21 | WB24K5035 | Rocker Switch-sur Ov |
|
- | |||||
| 29 | WB3K5109 | Infinite Knob Blk |
|
- | |||||
| 33 | WG02F05616 | Light Indicator (Replaces: WB25T10040) |
|
$ 12.40 | |||||
| 34 | WG02F04387 | Lens (Replaces: WB25T10042) |
|
$ 3.57 | |||||
| 47 | WB38K5029 | Barrier Vent |
|
- | |||||
| 51 | WB62K5079 | Main Top Black |
|
- | |||||
| 54 | WB02X10739 | Bracket Anti-tip |
|
- | |||||
| 56 | WB30X20478 | Surface Heating Element |
|
- | |||||
| 57 | WB30X20481 | Surface Heating Element |
|
- | |||||
| 59 | WG02F00094 | 6 Inch Chrome Burner Bow (Replaces: WB31T10010) |
|
Immediately | $ 35.73 | ||||
| 60 | WS01L00407 | 8 Inch Chrome Burner Bow (Replaces: WB31T10011) |
|
Immediately | $ 37.47 | ||||
| 61 | WB64K5051 | Bottom Burn Box |
|
- | |||||
| 69 | WB2M87 | Support Rod Clamp |
|
- | |||||
| 82 | PM2M2261 | Kit Surf Term Block (Replaces: WB17T10006) |
|
Immediately | $ 28.29 | ||||
| 90 | WB2K5226 | Rod Main Top Support |
|
- | |||||
| 91 | WB14K5008 | Hinge Maintop Lt |
|
- | |||||
| 91 | WB14K5009 | Hinge Maintop Rt |
|
- | |||||
| 93 | WB34K5137 | Barrier Bodyside Ext |
|
- | |||||
| 95 | WB1K5118 | Clip Hinge |
|
- | |||||
| 221 | WB63T10104 | Extension Upr Side Lt |
|
- | |||||
| 221 | WB63T10103 | Extension Upr Side Rt |
|
- | |||||
| 263 | WB7K5378 | I-brow Trim-blk |
|
- | |||||
| 264 | WB7K5101 | Vent Trim |
|
- | |||||
| 278 | WB34T10087 | Shield Frt Lwr Rt |
|
- | |||||
| 278 | WB34T10086 | Shield Frt Lwr Lt |
|
- | |||||
| 605 | WB18X26411 | Harness Wire Maintop |
|
- | |||||
| 691 | WB1K5162 | Screw |
|
- | |||||
| 760 | WG02F04011 | Screw Tc10-32x.250hexni (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 761 | WB1K5029 | Screw |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 802 | WS01A01257 | Screw 8-32 Tpt Flr 215 S (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WB01T10120 | Screw St 8-18x.750 (ni) |
|
- | |||||
| 999 | 31-10830 | Pm Instructions Install |
|
- | |||||
| 999 | 49-80755 | Pm Quick Guide |
|
- | |||||
| 999 | 31-17210 | Pm Manual Mini & Wd Asm |
|
- |
