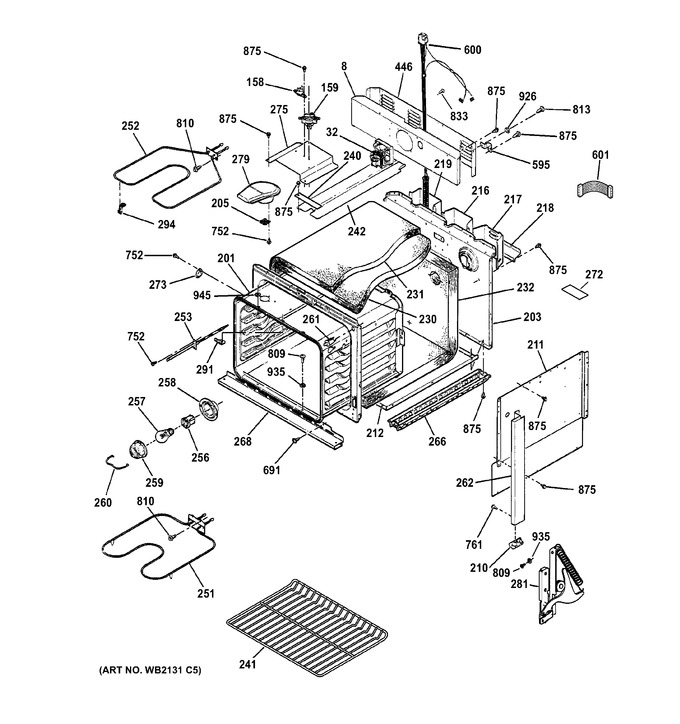

SELECT A DIAGRAM
1 - Control Panel & Cooktop
2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB2K5137 | Fan Support |
|
- | |||||
| 32 | WB26K5072 | Fan-lower |
|
- | |||||
| 158 | WB24K5033 | Switch Limit |
|
- | |||||
| 159 | WB24K5049 | Switch Limit |
|
- | |||||
| 201 | WB63T10053 | Wrapper Oven Cav Assy |
|
- | |||||
| 203 | WB63K5167 | Back Main |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 210 | WB7K5176 | Cap End Lwr Trim (blk) |
|
- | |||||
| 211 | WB63T10043 | Cabinet Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Cover Wire Element |
|
- | |||||
| 217 | WB34T10006 | Wire Cover |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Conduit Wire Cover |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrpr Otr |
|
- | |||||
| 232 | WB35K5089 | Insulation Back/btm Uppe |
|
- | |||||
| 240 | WB34K5138 | Barrier Frt Frame Latch |
|
- | |||||
| 241 | WG02L02645 | Rack Oven (Replaces: WB48T10093) |
|
$ 80.53 | |||||
| 242 | WB38K5041 | Vent Box |
|
- | |||||
| 251 | WB44T10064 | Bake Element |
|
- | |||||
| 252 | WB44T10111 | Element Broil (3400w) |
|
- | |||||
| 253 | WB21X5347 | Wb21x5301 |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 258 | WG02F04577 | Oven Light Cup (Replaces: WB02T10037) |
|
$ 28.58 | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | WG02F04509 | Switch Spdt High Amp (Replaces: WB24T10147) |
|
$ 27.16 | |||||
| 262 | WB07T10079 | Trim Side (bk) |
|
- | |||||
| 266 | WB63K5079 | Rail Base |
|
- | |||||
| 268 | WB7K5268 | Lower Vent Trim-blk |
|
- | |||||
| 272 | WB35K5112 | Insulator Module |
|
- | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 279 | WB38K5051 | Vent Box Asm |
|
- | |||||
| 281 | WB10T10042 | Hinge Oven Dr Rt |
|
- | |||||
| 281 | WB10T10043 | Hinge Oven Dr Lt |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 446 | WB34K5089 | Cover Wire Center |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18X26410 | Conduit Wire Asm |
|
- | |||||
| 601 | WB18K5490 | Door Switch Wire Harness |
|
- | |||||
| 691 | WB1K5162 | Screw |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 761 | WB1K5029 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 833 | WB1X1131 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 926 | WB1X1260 | Grund Washer |
|
- | |||||
| 935 | WB1K5174 | Washer |
|
- | |||||
| 945 | WB1K5046 | Washer |
|
- |
