SELECT A DIAGRAM

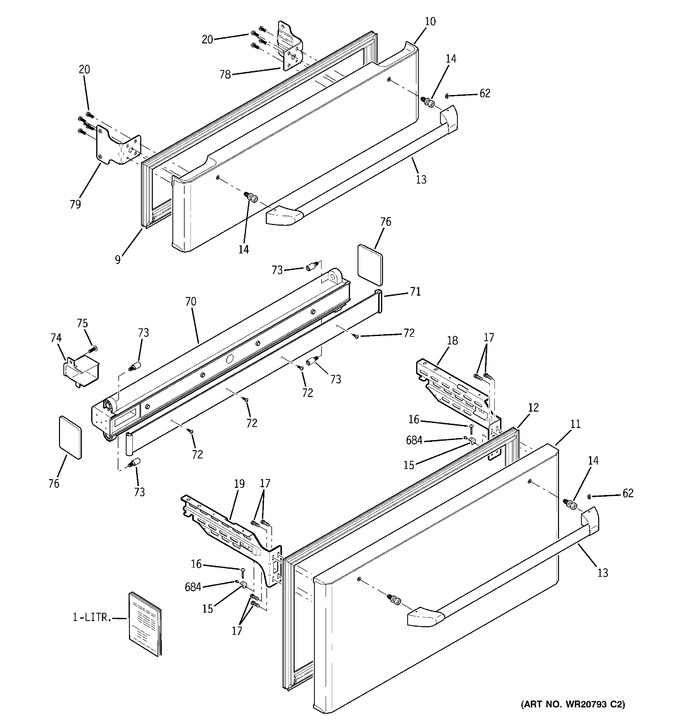

1 - Freezer Doors


2 - Fresh Food Doors


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment


9 - Clad Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51760		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60630		No Item Description		Appelez-nous	-
9	WR14X10340		Gasket		Appelez-nous	-
10	WR78X12353		Door Foam Asm Upr Fz Flt		Appelez-nous	-
11	WR78X12684		Door Foam Asm Lwr Fz Fla		Appelez-nous	-
12	WR14X10341		Gasket		Appelez-nous	-
13	WR01X10877		Handle Asm		Appelez-nous	-
14	WR01X10878		Fastener Handle Ss		Appelez-nous	-
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
17	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
18	WR02X13378		Bracket Slide Lwr Rh 21		Appelez-nous	-
19	WR02X13379		Bracket Slide Lwr Lh 21		Appelez-nous	-
20	WR01X10682		Scr 1/4-10 Pl Hxw 3/4 S		Appelez-nous	-
62	WR02X11850		Set Screw		Appelez-nous	-
70	WR01A00393		Mullion Foamed Asm   (Replaces: WR17X12440)				$ 276.86
71	WR17X12442		Face Mullion Dd Asm		Appelez-nous	-
72	WR01X10788		Screw-white		Appelez-nous	-
73	WR01X10787		Shoulder Bolt		Appelez-nous	-
74	WR17X12924		Wiring Enclosure		Appelez-nous	-
75	WR01A01042		Scr 8-18 Ab Rndw 5/8 Ss   (Replaces: WR01X10789)				$ 3.97
76	WR14X10248		Mullion Side Foam Pad		Appelez-nous	-
78	WR02X12709		Connector Door Upper Rh		Appelez-nous	-
79	WR02X12710		Connector Door Upper Lh		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
