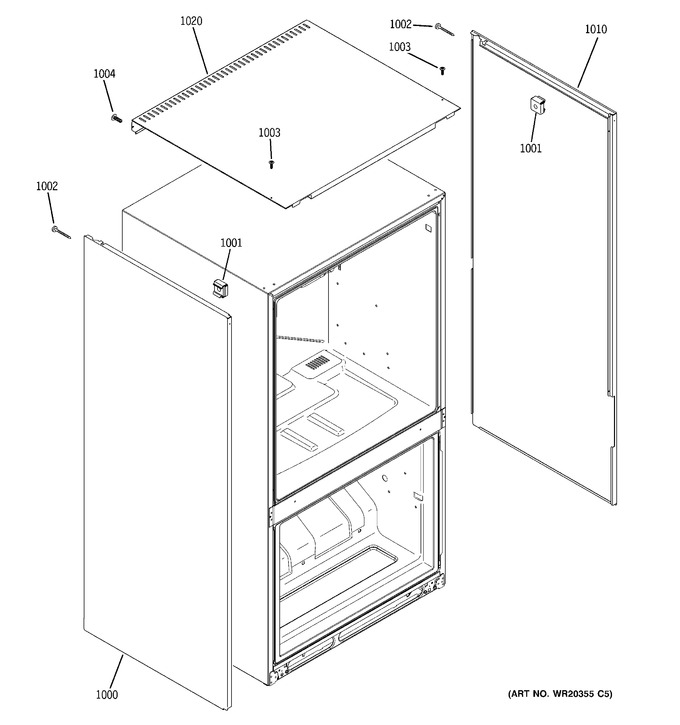

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1000	WR79X10052		Clad Left Side		Appelez-nous	-
1001	WR01X10935		Cage Nut		Appelez-nous	-
1002	WR01X10933		Screw 10n100txp0z		Appelez-nous	-
1003	WR01X10934		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
1004	WR01X10065		Screw 10-32 Gxtt Flp 595		Appelez-nous	-
1010	WR79X10051		Clad Right Side		Appelez-nous	-
1020	WR79X10050		Panel Top		Appelez-nous	-
