SELECT A DIAGRAM

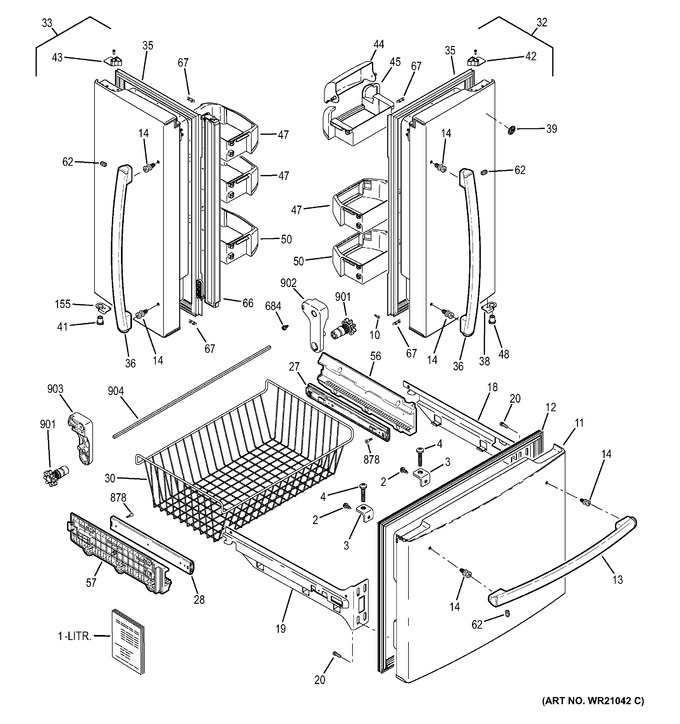

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51781		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60603		Guide Owner		Appelez-nous	-
2	WR01X10844		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
3	WR02X12870		Bracket Support		Appelez-nous	-
4	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
10	WR02X13594		Divider Guide Rail		Appelez-nous	-
11	WR78X20664		Door Foam Fz Asm		Appelez-nous	-
12	WR14X10349		Gasket		Appelez-nous	-
13	WR01L09338		Arc Handle Asm Fz   (Replaces: WR12X20480)			Immediately	$ 86.48
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 15.78
14	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
18	WR72X10299		Bracket Lower		Appelez-nous	-
19	WR72X10300		Bracket Lower		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
27	WR17X20764		Slide Rh		Appelez-nous	-
28	WR17X20766		Slide Lh		Appelez-nous	-
30	WR01L00154		Basket Lower   (Replaces: WR21X10179)				$ 1,323.31
32	WR01L08884		Door Foam Ff French Asm   (Replaces: WR78X20654)				$ 320.55
33	WR01L08885		Door Foam Ff French Asm   (Replaces: WR78X20663)				$ 182.50
35	WR01L08729		Gasket French   (Replaces: WR14X10279)			Immediately	$ 33.35
36	WR01L09337		Arc Handle Asm Ff   (Replaces: WR12X20476)			Immediately	$ 81.11
38	WR02X12899		Stop Door		Appelez-nous	-
39	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
41	WR02X12903		Thimble Door Plastic		Appelez-nous	-
42	WR01L00494		Cam Ff Closure Lh   (Replaces: WR02X12360)				$ 20.65
43	WR02X12359		Cam Ff Closure Rh		Appelez-nous	-
44	WR22X10063		Door Dairy		Appelez-nous	-
45	WR22X10073		Dairy Bin		Appelez-nous	-
47	WR01L08751		Shelf Module   (Replaces: WR71X20333)				$ 51.31
48	WR01A00988		Thimble Door Ff   (Replaces: WR02X12363)				$ 15.54
50	WR32X20428		Shelf Module		Appelez-nous	-
56	WR02X20763		Holder Rail Fz Drawer		Appelez-nous	-
57	WR02X20765		Holder Rail Fz Drawer		Appelez-nous	-
62	WR01X20424		Set Screw		Appelez-nous	-
66	WR01A01791		Mullion Articulation Asm   (Replaces: WR17X20619)			Immediately	$ 191.40
67	WR02X12469		Bumper French Door		Appelez-nous	-
155	WR02X12900		Stop Door		Appelez-nous	-
684	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
878	WR01A00634		Scr 10-14 Pl Flt20 3/4 S   (Replaces: WR01X10939)				$ 3.97
901	WR01L04645		Wheel Sprocket   (Replaces: WR02X12904)				$ 9.92
902	WR01A00011		Arm Wheel Sprocket   (Replaces: WR02X12905)				$ 17.47
903	WR01A00012		Arm Wheel Sprocket   (Replaces: WR02X12906)				$ 10.22
904	WR02X12907		Axle Wheel Sprocket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
