1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts

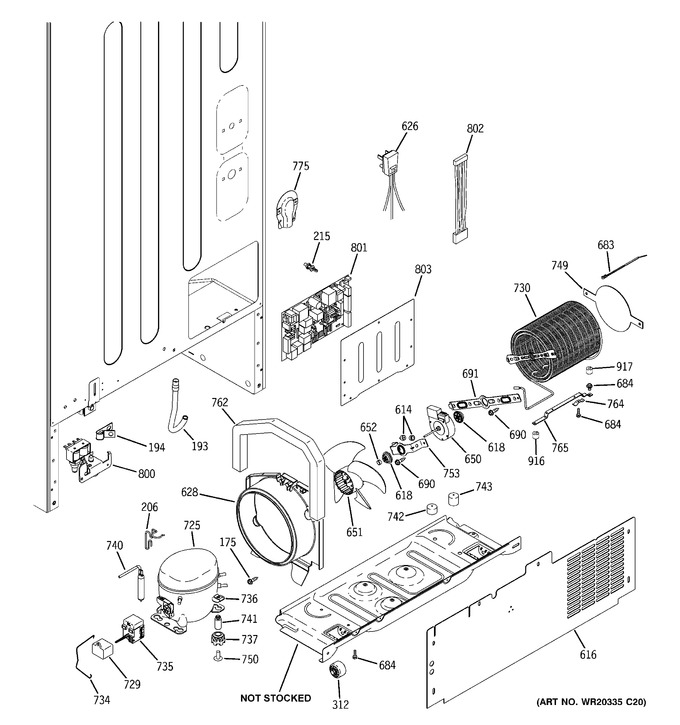

7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Screw 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 193 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 206 | WR02X12377 | Clip Drain Tube |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR82X10110 | Cover Access |
|
- | |||||
| 618 | WR01A00315 | Grommet Fan Motor (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 684 | WR01X10252 | Screw 10-32 Tt Hxw 5/16 |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10098 | Prod Serv Hi Side Replc |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 730 | WR01F02892 | Prod Serv Condenser (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 734 | WR02X13140 | Clip Retainer Combo |
|
- | |||||
| 735 | WG03F01425 | Combo Device Tsd-2 (Replaces: WR08X10111) |
|
Immediately | $ 55.98 | ||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 743 | WR02X10588 | Support Condenser |
|
- | |||||
| 749 | WR17X12508 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve Assy W/o Gua |
|
$ 71.10 | |||||
| 801 | WR01F00233 | Board Asm Main Control (Replaces: WR55X10996) |
|
Immediately | $ 205.15 | ||||
| 802 | WR23X10510 | Harness Board Indiv |
|
- | |||||
| 803 | WR02X12027 | Cover Main Board Asm |
|
- | |||||
| 916 | WR02X13569 | Sound Damper |
|
- | |||||
| 917 | WR02X13573 | Sound Damper |
|
- | |||||
| WG03F00417 | Im Crescent |
|
Immediately | $ 207.39 | |||||
| WR01L09338 | Poignee Asm. |
|
Immediately | $ 86.48 | |||||
| WG03A00379 | Gas Noise Service Fix |
|
Immediately | $ 84.76 | |||||
| WR01L09337 | Arc Handle Asm Ff |
|
Immediately | $ 81.11 | |||||
| WR01L08886 | Door Freezer Asm |
|
$ 236.91 | ||||||
| WR01L08885 | Door Fresh Food Asm Lf |
|
$ 182.50 | ||||||
| WR01L08884 | Door |
|
$ 320.55 | ||||||
| WR01L08731 | Gasket Dooor Freezer |
|
$ 52.69 | ||||||
| WR01L09338 | Jaladera Congelador (Replaces: WR01L08667) |
|
Immediately | $ 86.48 | |||||
| WR01L09337 | Poignee (Replaces: WR01L08660) |
|
Immediately | $ 81.11 | |||||
| WR01L04644 | R├#servoir D''eau Asm |
|
Immediately | $ 85.50 | |||||
| WR01L09339 | Bac ﾃ# Lﾃ#gumes (Replaces: WR01L03055) |
|
Immediately | $ 120.80 | |||||
| WR01L02554 | Ice Drawer |
|
$ 67.77 | ||||||
| WR01L02468 | Charniﾃ#re Et Goupille Asm |
|
$ 57.12 | ||||||
| WR01L08729 | Gasket French (black) (Replaces: WR01L02127) |
|
Immediately | $ 33.35 | |||||
| WR01L02106 | Gasket Cover Veg |
|
$ 34.02 | ||||||
| WR01L02082 | Gasket |
|
$ 19.90 | ||||||
| WR01L02026 | Couvercle |
|
$ 119.45 | ||||||
| WR01L00348 | Snack Pan |
|
$ 54.39 | ||||||
| WR01F04650 | Roue De Ventilateur Pour ﾃ#vaporateur (Replaces: WR01F03314) |
|
$ 20.54 | ||||||
| WR01F02868 | Thermostat De Dﾃ#vigrage |
|
Immediately | $ 68.13 | |||||
| WR01F02845 | Connector |
|
Immediately | $ 19.06 | |||||
| WG03F09086 | Switch Light Ff (Replaces: WR01F02293) |
|
Immediately | $ 11.12 | |||||
| WR01F02043 | Capacitor |
|
Immediately | $ 17.17 | |||||
| WR01F01790 | Holder Rail Fz Drawer |
|
Immediately | $ 31.76 | |||||
| WR01F01789 | Holder Rail Fz Drawer |
|
Immediately | $ 31.76 | |||||
| WR01F01730 | Capteur |
|
Immediately | $ 16.29 | |||||
| WR01F05069 | Moteur (Replaces: WR01F01627) |
|
Immediately | $ 94.54 | |||||
| WR01F00796 | Filter Asm And Tube, Monogram |
|
Immediately | $ 189.15 | |||||
| WR01F00629 | Damper Duct Motorized Asm |
|
Immediately | $ 62.73 | |||||
| WR01F00253 | Board Asm Temp Control |
|
$ 205.95 | ||||||
| WR01F00233 | Board Asm Main Control |
|
Immediately | $ 205.15 | |||||
| WR01A01809 | Kit Slide Holder 20-22 B |
|
Immediately | $ 207.71 | |||||
| WR01A01801 | Fastener Door Handle |
|
Immediately | $ 12.71 | |||||
| WR01A01791 | Coison Asm. |
|
Immediately | $ 191.40 | |||||
| WR01A01450 | Badge Ge |
|
$ 14.29 | ||||||
| WR01A00257 | Attache De La Poignﾃ#e Ss |
|
$ 15.78 | ||||||
| WR01A00213 | Glissiﾃ#re Gauche Du Bac |
|
Immediately | $ 44.46 | |||||
| WR01A00212 | Glissiﾃ#re Droite Du Bac |
|
Immediately | $ 66.76 | |||||
| WG04F05272 | Cvr Console Asm |
|
$ 252.47 | ||||||
| WG03F09086 | Wg03f03974 (Replaces: WG03F03974) |
|
Immediately | $ 11.12 | |||||
| WG03F01425 | Overload Ptcr Combo |
|
Immediately | $ 55.98 | |||||
| PMMWF | Filtre D''eau (Replaces: WG03F00835) |
|
Immediately | $ 81.88 | |||||
| WG04F11911 | Valve (Replaces: WG03F00685) |
|
Immediately | $ 123.62 |
