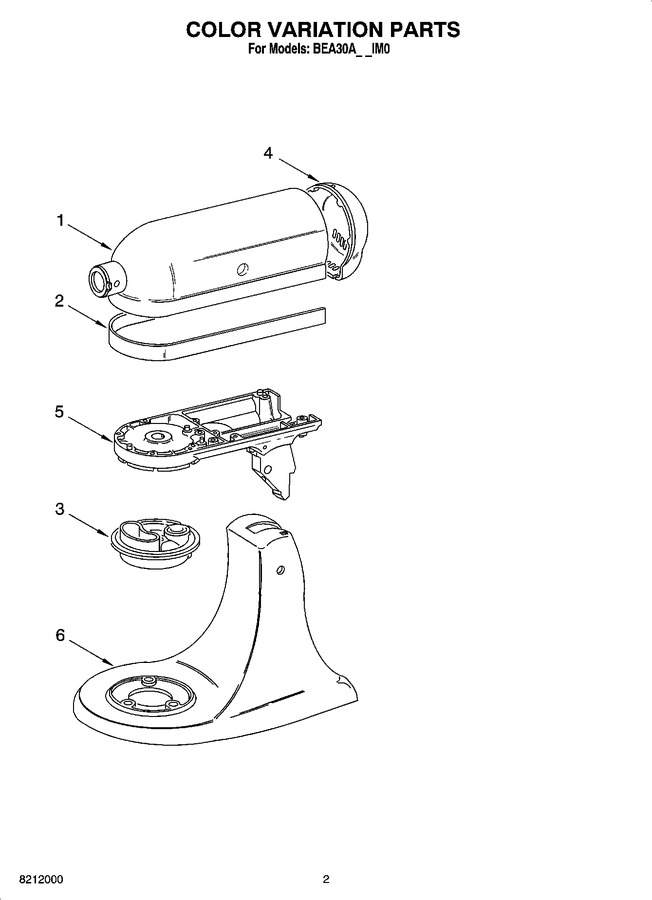

01 - Color Variation Parts
02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Parts, Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1 | WP240291-7 | Motor Housing (cobalt Blue) (Replaces: 240291-7) |
|
$ 98.13 | |||||
| 1 | 240291-19 | Motor Housing (chrome) |
|
- | |||||
| 2 | 9706004 | Trim Band |
|
- | |||||
| 3 | W11199173 | Planetary-onyx Black (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 3 | W11084831 | Planetary (red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3 | W10342514 | Planetary (blue) (Replaces: 240286-10) |
|
$ 45.31 | |||||
| 3 | 240286-21 | Planetary-chrome |
|
- | |||||
| 4 | 240253-14 | End Cover-onyx Black |
|
$ 48.42 | |||||
| 4 | W11084313 | End Cover (red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 4 | 240253-8 | End Cover (blue) |
|
$ 46.79 | |||||
| 4 | 240253-20 | End Cover-chrome |
|
- | |||||
| 5 | WP240350-56 | Lower Gearcase-onyx Black (Replaces: 240350-56) |
|
$ 108.70 | |||||
| 5 | WP240350-84 | Lower Gearcase (red) (Replaces: 240350-84) |
|
$ 65.91 | |||||
| 5 | 240350-31 | Lower Gearcase (blue) |
|
- | |||||
| 5 | 9706662 | Lower Gearcase-chrome (Replaces: 9701398) |
|
$ 68.93 | |||||
| 6 | 240151-13 | Pedestal-onyx Black |
|
- | |||||
| 6 | W11131262 | Pedestal (red) (Replaces: 240151-20) |
|
$ 97.71 | |||||
| 6 | 240151-8 | Pedestal (blue) |
|
- | |||||
| 6 | 4176335 | Pedestal-chrome |
|
- |
