SELECT A DIAGRAM

01 - Color Variation Parts


02 - Base And Pedestal Unit


03 - Case, Gearing And Planetary Unit

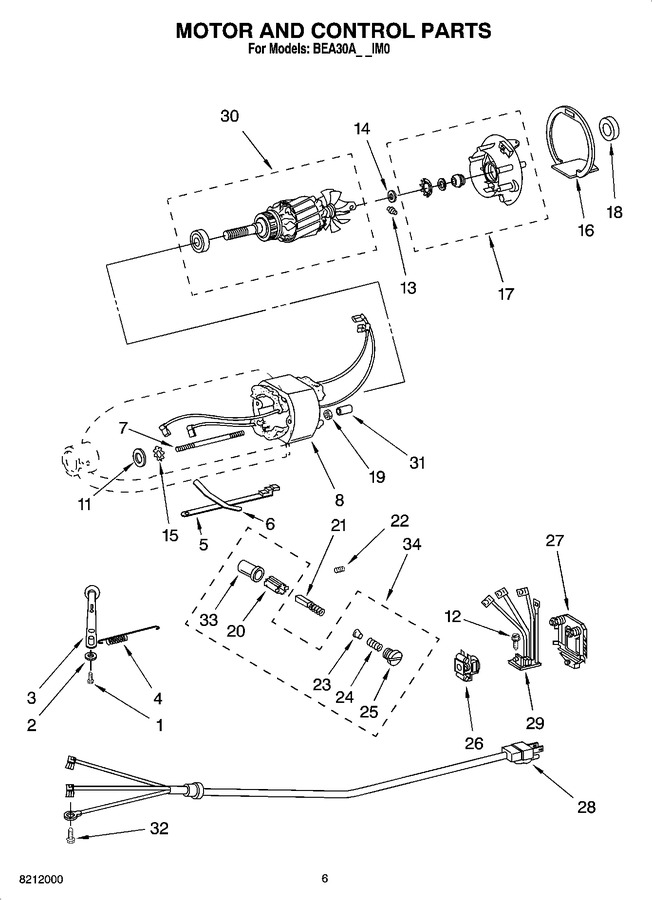

04 - Motor And Control Parts, Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6011-006971		Screw, Pivot   (Replaces: 110679)			Immediately	$ 3.59
2	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
3	WP9709276		Switch Lever And Stud (black)   (Replaces: 3184193)			Immediately	$ 5.32
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	W11557271		Link, Speed & Cam   (Replaces: 3184176)			Immediately	$ 8.47
6	WP240205		Spring, Flat   (Replaces: 240205)				$ 4.99
7	W10851015		Screw, Stator   (Replaces: 240769)				$ 4.30
8	W10870869		Field Assembly   (Replaces: 9702695)			Immediately	$ 56.10
11	WP9704324		Washer, Bearing   (Replaces: 9704324)				$ 4.72
12	W11084238		Screw, Self Tapping   (Replaces: 3400402)		Appelez-nous	-
13	WP16998		Stud, Governor Drive   (Replaces: 16998)				$ 4.82
14	W11233557		Washer, Spacing   (Replaces: 3180162)				$ 8.13
15	W11170663		Washer   (Replaces: 3400900)				$ 4.54
16	WP240775-1		Seal, End   (Replaces: 240775-1)			Immediately	$ 5.12
17	WP3180526		Bracket, Bearing Assembly   (Replaces: 3180526)				$ 20.80
18	3180238		Washer, Felt		Appelez-nous	-
19	8533905		Nut, Machine				$ 26.90
20	W11656718		Insert, Brush Holder   (Replaces: 240680)				$ 5.22
21	WPW10380496		Brush, Carbon   (Replaces: 9706416)			Immediately	$ 4.25
22	W11176201		Screw, Set   (Replaces: 9707926)				$ 4.75
23	WP116286		Cap, Spring Seat   (Replaces: 116286)				$ 4.77
24	WP116287		Spring, Cap   (Replaces: 116287)				$ 4.84
25	WP3184212		Cap, Brush Holder (black)   (Replaces: 3184212)			Immediately	$ 4.79
26	WPW10330804		Governor Assembly   (Replaces: 17830)			Immediately	$ 16.39
27	WPW10119326		Control Plate Assembly   (Replaces: 240904-2)			Immediately	$ 17.43
28	9707940		Power Cord (black)		Appelez-nous	-
29	WPW10325124		Phase Control Board (120 Volt)   (Replaces: 9706595)			Immediately	$ 17.30
30	W11133634		Armature & Bearing (includes Bearing)   (Replaces: 9708315)				$ 71.22
31	W11210996		Sleeve, Motor Stud   (Replaces: 4162634)		Appelez-nous	-
32	3184609		Screw, Ground Tapping		Appelez-nous	-
33	WP3179908		Housing, Brush Holder   (Replaces: 3179908)				$ 4.35
34	9707963		Ice Cream Attach (kica)		Appelez-nous	-
34	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
34	3177924		Bowl Cover, Plastic Non-sealing		Appelez-nous	-
34	W10802058		Bowl, Stainless With Handle   (Replaces: 4163337)				$ 103.12
34	3180262		Bowl, 3 Qt. (ksm103 & Ksm110)				$ 68.75
34	W10802058		Bowl, Satin Stainless   (Replaces: 4162160)				$ 103.12
34	4162546		Brush Holder Assy				$ 23.37
34	4164839		Speed Disc (service Tool)		Appelez-nous	-
34	W11200218		Grease, Planetary   (Replaces: 4160588)			Immediately	$ 86.08
34	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a))		Appelez-nous	-
34	4164749		Food Grinder (fg-a)		Appelez-nous	-
34	8211924		Grain Mill, Kgma		Appelez-nous	-
34	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
34	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
34	RVSA		Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa)   (Replaces: 4164750)				$ 115.50
34	W11312468		Pouring Shield (kps2cl)   (Replaces: 3177975)				$ 43.26
34	4164824		Pasta Maker Plates Snpa		Appelez-nous	-
34	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-
34	3180617		Cover, Decorative		Appelez-nous	-
34	4162838		Food Tray (ft)		Appelez-nous	-
34	4164748		Juicer, Je		Appelez-nous	-
34	4164747		Can Opener, Co		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
