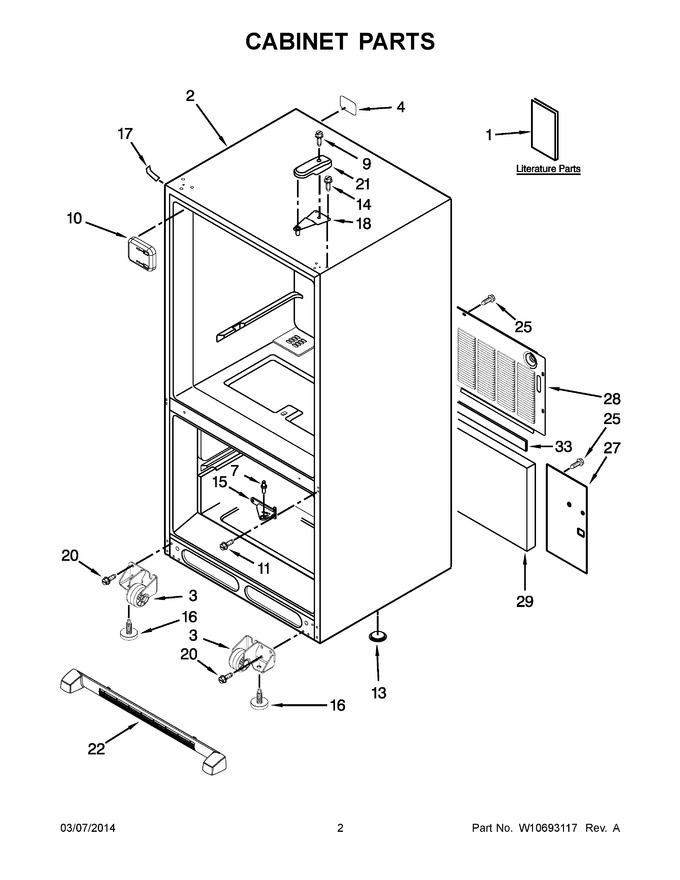

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 1 | W10308619 | Tech Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 3 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 4 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 6.67 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.90 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 7.59 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 13.25 | |||||
| 13 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 62.81 | |||||
| 16 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 18 | WP12566606ED | Top Hinge (right Hand) (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 20.11 | |||||
| 22 | WPW10534161 | Grille Assembly (includes Clips) (white) (Replaces: W10534161N) |
|
$ 132.38 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 19.22 | |||||
| 28 | W10212535 | Cover, Unit |
|
- | |||||
| 29 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 33 | B5759655 | Gasket |
|
$ 11.73 |
