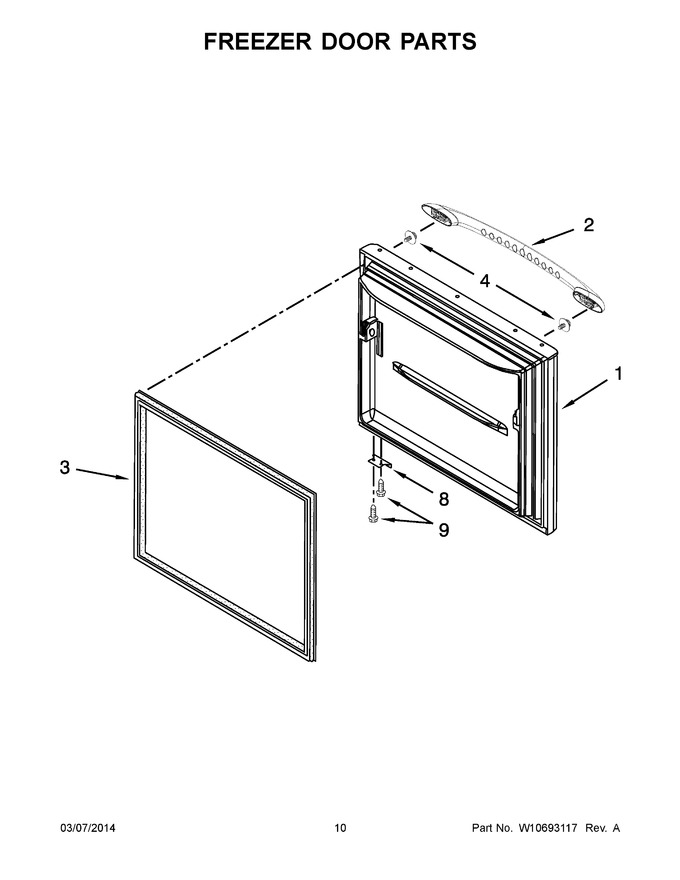

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109214WQ | Freezer Door (w/ Insulation) (white) (Replaces: 13109214W) |
|
$ 858.63 | |||||
| 2 | WPW10252284A | Handle, Door (white) (Replaces: W10252284N) |
|
$ 68.65 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10571962) |
|
$ 222.58 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 |
