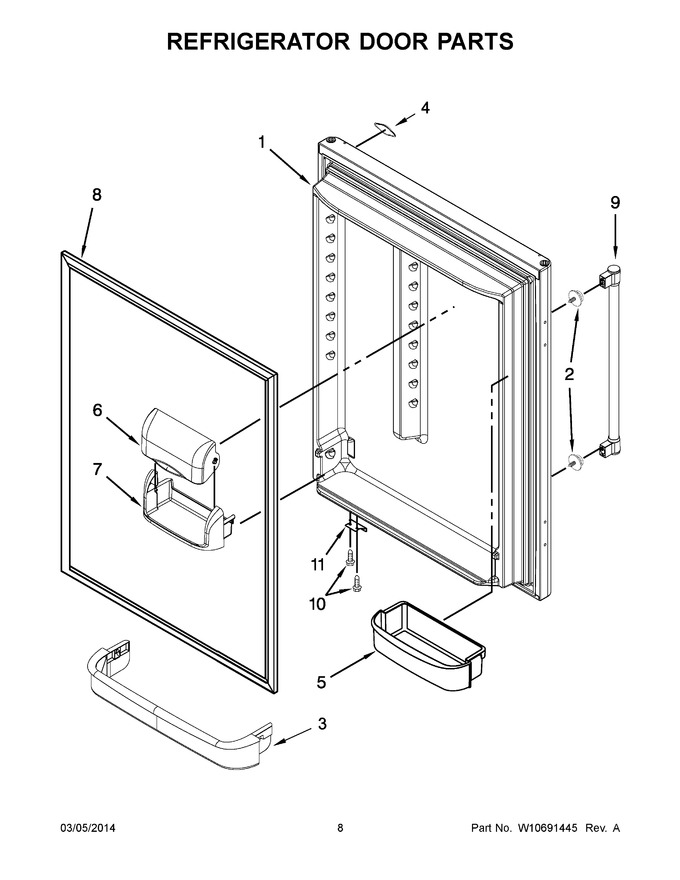

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402WQ | Door, Refrigerator (white) (Replaces: 13109402W) |
|
$ 1,100.83 | |||||
| 1 | 13107553SQ | Door, Refrigerator (stainless) (Replaces: 13107553S) |
|
$ 1,311.81 | |||||
| 1 | 13109402BQ | Door, Refrigerator (black) (Replaces: 13109402B) |
|
$ 931.31 | |||||
| 2 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 3 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 4 | WPW10612926 | Badge (grey) (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 5 | WP67001021 | Bucket, Door (medium) (Replaces: 12557204) |
|
$ 84.95 | |||||
| 5 | 67001141 | Bucket, Door (small) (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 6 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 7 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10443309) |
|
Immediately | $ 365.24 | ||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10436245) |
|
$ 362.36 | |||||
| 8 | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
$ 227.86 | |||||
| 9 | WPW10643725 | Handle, Door (stainless) (Replaces: W10643725) |
|
$ 313.17 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 11 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 |
