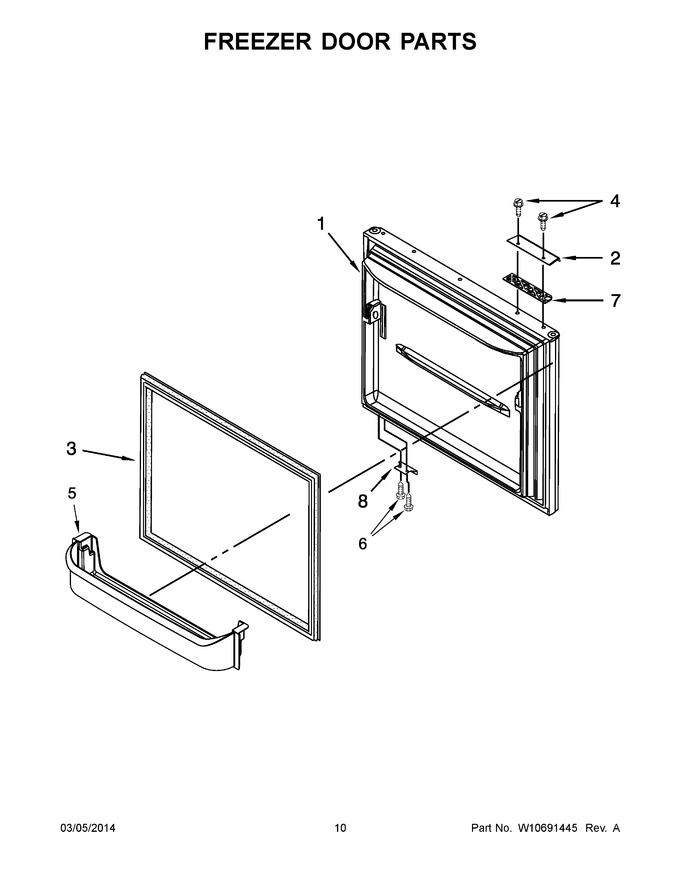

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024238WQ | Door, Freezer (white) (Replaces: 13024238W) |
|
$ 793.03 | |||||
| 1 | 13024238BQ | Door, Freezer (black) (Replaces: 13024238B) |
|
$ 749.77 | |||||
| 1 | 13024245SQ | Door, Freezer (stainless) (Replaces: 13024245S) |
|
$ 1,075.17 | |||||
| 2 | WP67003572 | Handle, Door (stainless) (Replaces: 12660007S) |
|
$ 177.68 | |||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10443311) |
|
Immediately | $ 316.65 | ||||
| 3 | W10443312 | Gasket, Door (grey) |
|
$ 279.94 | |||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10436247) |
|
Immediately | $ 365.98 | ||||
| 4 | 67006529 | Screw (Replaces: 12991701) |
|
$ 13.47 | |||||
| 5 | 67003397 | Retainer, Door (Replaces: 12737501) |
|
$ 109.61 | |||||
| 6 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 7 | 12647901S | Spacer, Handle (stainless) |
|
$ 15.35 | |||||
| 8 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 8 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 |
