01 - Cover Sheet
02 - Cooktop Parts

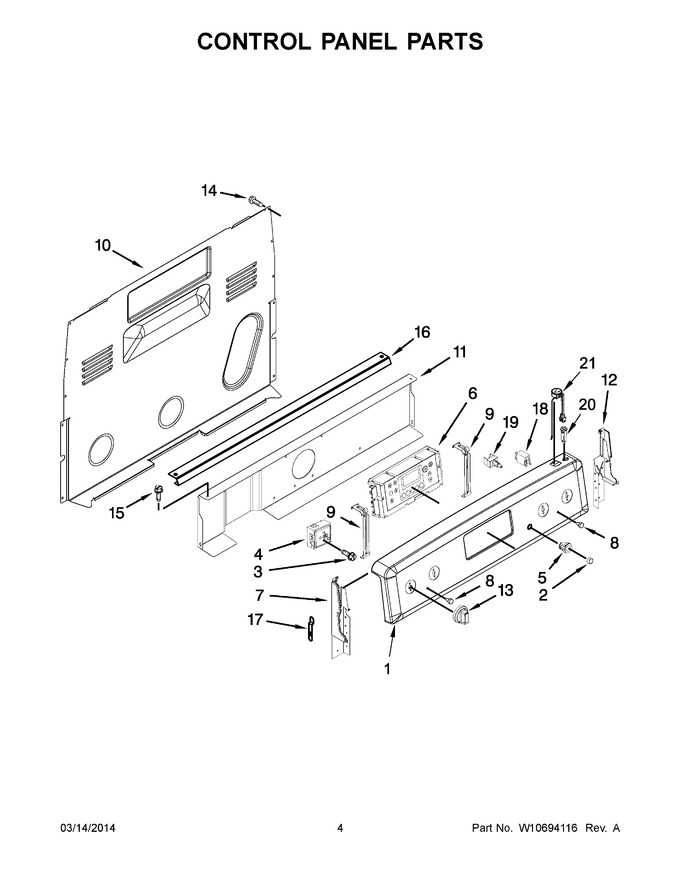

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10655882 | Panel, Backguard (white) |
|
$ 130.84 | |||||
| 1 | W10655883 | Panel, Backguard (black) |
|
$ 119.97 | |||||
| 1 | W10655884 | Panel, Backguard (stainless) |
|
$ 132.25 | |||||
| 2 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 2 | W10918209 | Button, Keep Warm (stainless) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 2 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10411934 | Switch, Infinite (right Front) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 5 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 5 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 6 | WPW10655840 | Control (white) (Replaces: W10655840) |
|
$ 274.09 | |||||
| 6 | WPW10655845 | Control (stainless) (Replaces: W10655845) |
|
$ 275.09 | |||||
| 6 | WPW10655843 | Control (black) (Replaces: W10655843) |
|
$ 260.43 | |||||
| 7 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219370 | End Cap (white (left Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 12 | W11219665 | End Cap (black (left Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 13 | WPW10666901 | Knob (stainless) (Replaces: W10666901) |
|
$ 155.95 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 19 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 178.91 | |||||
| 20 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 20 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 21 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 21 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 |
