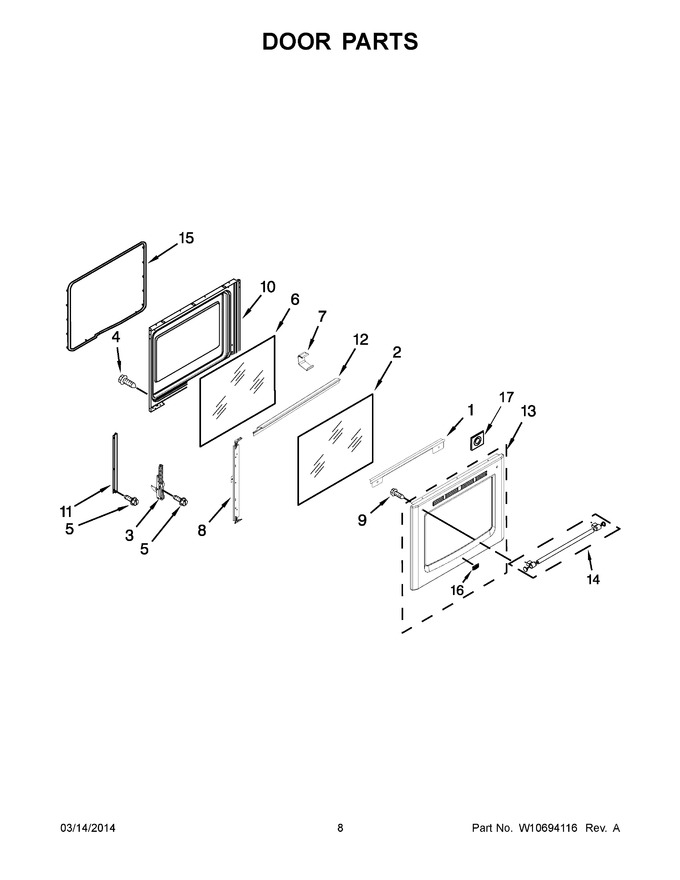

| 1 | W10330075 | Trim, Vent (white) |
|
$ 71.78 | |||||
| 1 | W10339814 | Trim, Vent (black) |
|
$ 139.33 | |||||
| 2 | W10615599 | Glass, Outer |
|
$ 118.66 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 9 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 13 | W10655834 | Skin, Door (black) |
|
$ 248.78 | |||||
| 13 | W10655831 | Skin, Door (white) |
|
$ 252.82 | |||||
| 13 | WPW10655838 | Skin, Door (stainless) (Replaces: W10655838) |
|
Immediately | $ 373.36 | ||||
| 14 | WPW10665831 | Handle, Door (stainless) (Replaces: W10665831) |
|
$ 234.70 | |||||
| 14 | W10665830 | Handle, Door (white) |
|
$ 292.24 | |||||
| 14 | W10665829 | Handle, Door (black) |
|
- | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 16 | W10911300 | Badge (Replaces: W10636267) |
|
$ 80.51 | |||||
| 17 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 17.43 |
