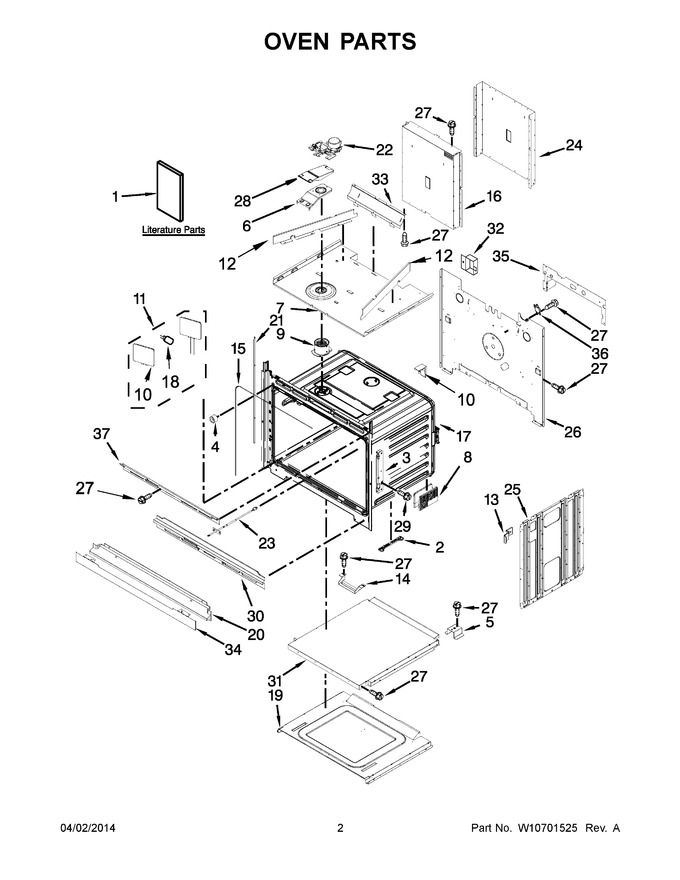

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10516784		Installation Instructions		Appelez-nous	-
1	W10354193		Use & Care Guide		Appelez-nous	-
1	W10492435		Tech Sheet (english/french)		Appelez-nous	-
2	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 26.76
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 57.49
4	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
5	W10213759		Support, Air Channel		Appelez-nous	-
6	W10616809		Base, Vent Exhaust				$ 32.24
7	W10641574		Chassis, Top		Appelez-nous	-
8	W10821321		Foot, Base   (Replaces: W10318219)				$ 33.51
9	W11240525		Tube, Vent   (Replaces: W10282946)				$ 25.54
10	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
11	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 96.33
12	W10588707		Chassis, Deflector		Appelez-nous	-
13	W10347649		Spacers, Front				$ 15.02
14	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
15	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 105.26
16	W10318196		Duct, Chassis Back Upper				$ 218.89
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
18	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
19	W10282901		Base, Chassis				$ 177.43
20	W10506349		Assembly, Bottom Vent (white)				$ 161.14
20	WPW10327376		Assembly, Bottom Vent (stainless)   (Replaces: W10327376)				$ 561.46
20	W10351276		Assembly, Bottom Vent (black)				$ 146.10
21	W10536161		Cover, Side Trim (right)   (Replaces: W10327368)				$ 50.62
21	W10536161		Cover, Side Trim (left)   (Replaces: W10327369)				$ 50.62
22	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 306.46
23	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 132.94
24	W10542857		Duct, Chassis Back (lower)				$ 105.99
25	W10318190		Side, Chassis				$ 117.20
26	W10813734		Back, Chassis   (Replaces: W10696136)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	W10616810		Cover, Vent Exhaust				$ 69.95
29	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
30	W10283041		Vent, Center 27``			Immediately	$ 155.83
31	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10904163		Deflector, Blower   (Replaces: W10671661)			Immediately	$ 169.79
34	WPW10351237		Trim, Bottom Vent (black)   (Replaces: W10351237)				$ 148.97
34	WPW10504025		Trim, Bottom Vent (white)   (Replaces: W10504025)				$ 143.58
34	WPW10327378		Trim, Bottom Vent (stainless)   (Replaces: W10327378)			Immediately	$ 224.77
35	W10504028		Bracket, U-shape				$ 19.57
36	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
37	W10283037		Vent, Top 27``			Immediately	$ 148.31
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W11688333		Insulation, Back   (Replaces: W10282945)		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-
