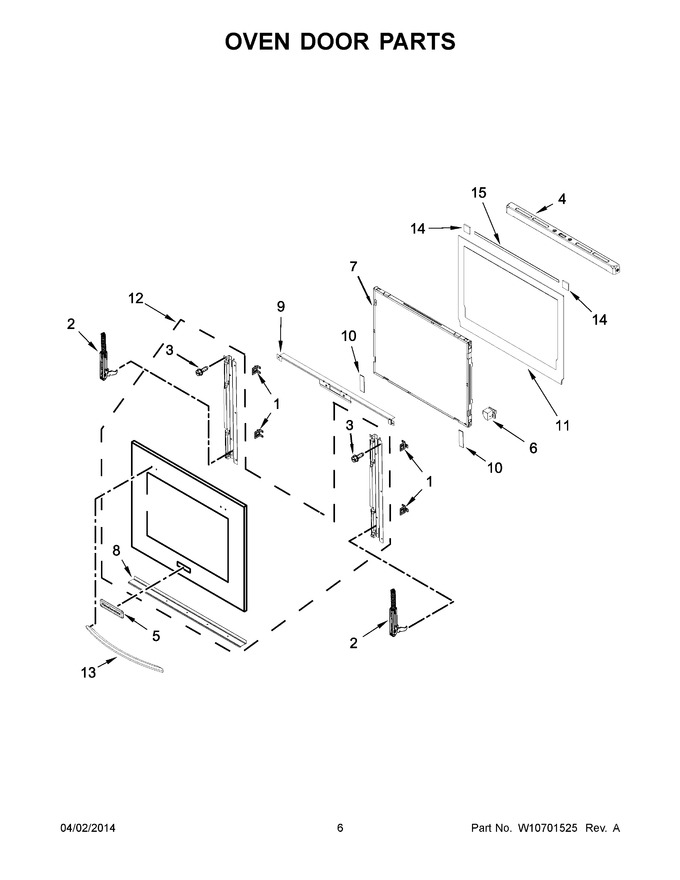

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10549747		Clip, Spring   (Replaces: W10549747)				$ 20.91
2	W11642291		Hinge, Door   (Replaces: W10419878)				$ 83.24
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W10416258		Vent, Door Top		Appelez-nous	-
5	WPW10243391		Badge (grey)   (Replaces: W10243391)				$ 58.31
5	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 69.98
5	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 73.70
6	WPW10581826		Bracket, Door (right)   (Replaces: W10581826)				$ 66.63
6	WPW10581831		Bracket, Door (left)   (Replaces: W10581831)				$ 37.20
7	W10347599		Assembly, Window Pack				$ 212.42
8	W10479069		Bracket, Lower Door		Appelez-nous	-
9	W10459352		Bracket, Upper Glass				$ 145.30
10	W10840861		Spacer   (Replaces: W10517440)				$ 10.37
11	WPW10335921		Liner, Door   (Replaces: W10335921)				$ 413.62
12	W10587564		Assembly, Door Glass (lower) (black)		Appelez-nous	-
12	W10587569		Assembly, Door Glass (upper) (white)		Appelez-nous	-
12	W10587567		Assembly, Door Glass (upper) (black)		Appelez-nous	-
12	W10587563		Assembly, Door Glass (lower) (stainless)		Appelez-nous	-
12	W10587565		Assembly, Door Glass (lower) (white)		Appelez-nous	-
12	W10587566		Assembly, Door Glass (upper) (stainless)		Appelez-nous	-
13	WPW10437675		Handle, Door (stainless)   (Replaces: W10437675)				$ 202.61
13	W10284920		Handle, Door (white)		Appelez-nous	-
13	W10284919		Handle, Door (black)		Appelez-nous	-
14	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 12.44
15	W10489274		Pad, Vent				$ 7.58
