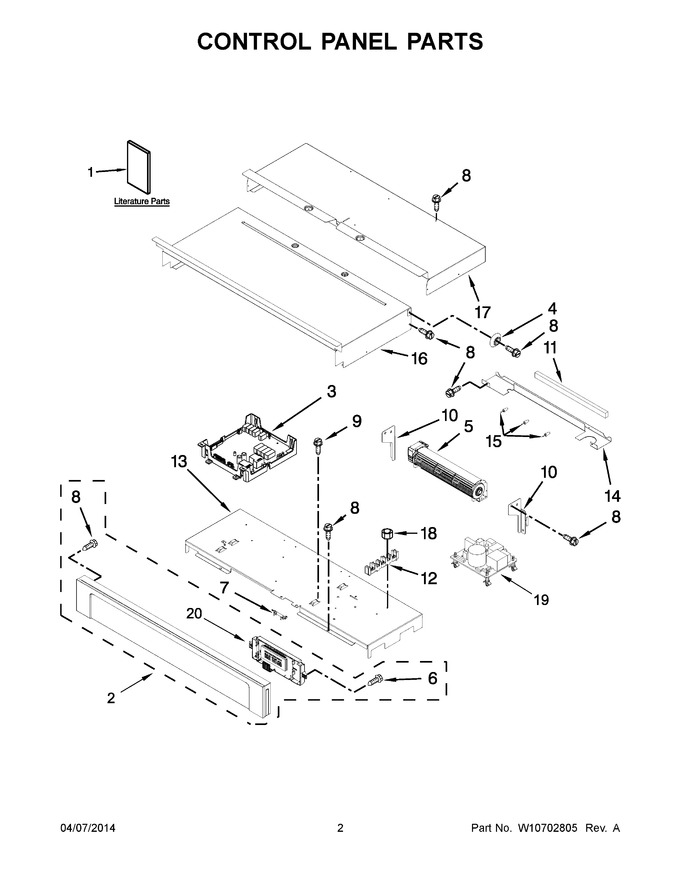

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351242 | Installation Instructions |
|
- | |||||
| 1 | W10354189 | Use & Care Guide |
|
- | |||||
| 1 | W10507056 | Tech Sheet |
|
- | |||||
| 2 | W10540086 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 2 | W10540088 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 2 | W10540087 | Assembly, Control Panel (includes Overlay) (black) |
|
$ 498.45 | |||||
| 3 | WPW10496836 | Manager, Appliance (Replaces: W10496836) |
|
$ 467.20 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10661038 | Blower (lower) (Replaces: W10661038) |
|
$ 259.23 | |||||
| 5 | W10641253 | Blower (upper) |
|
$ 127.63 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10545291) |
|
Immediately | $ 35.50 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10283078 | Bracket, Blower (right) |
|
- | |||||
| 10 | W10351257 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 13 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 14 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30`` |
|
$ 138.81 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30`` (Replaces: W10318194) |
|
- | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 20 | W10496841 | Board, Navigator |
|
- |
