Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10347596 Assembly, Window Pack   (Replaces: W10347596) In-Stock Immediately $ 323.05

2 W10812024 Spring, Door Glass Fixation   (Replaces: W10284285) Special Order $ 165.76

3 WP3196183 Screw   (Replaces: 3196183) In-Stock Immediately $ 8.18

4 WPW10392683 Bumper, Rail   (Replaces: W10392683) Special Order $ 10.12

5 WPW10709147 Assembly, Liner   (Replaces: W10320791) Special Order $ 366.69

6 W10825778 Hinge, Door   (Replaces: W10419876) In-Stock Immediately $ 112.85

7 W10587561 Assembly, Door Glass (black) Appelez-nous -
7 W10587560 Assembly, Door Glass (stainless) Appelez-nous -
7 W10587562 Assembly, Door Glass (white) Appelez-nous -
8 W10284922 Handle, Door (black) Appelez-nous -
8 WPW10161708 Handle, Door (stainless)   (Replaces: W10284921) Special Order $ 373.01

8 W10284923 Handle, Door (white) Appelez-nous -
9 WPW10618107 Liner, Inner Glass   (Replaces: W10284901) Special Order $ 247.71

10 W10853628 Bracket, Glass   (Replaces: W10284297) Special Order $ 163.86

11 WP3196183 Screw   (Replaces: 3196183) In-Stock Immediately $ 8.18

12 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

13 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60


    View Diagram in Separate Window     Print Icon   Print Part List

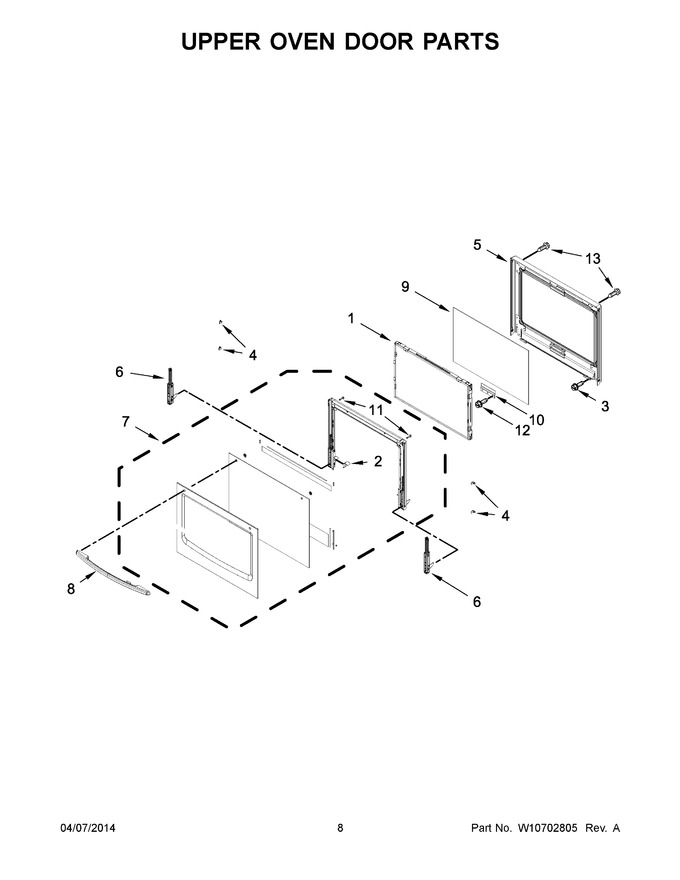

Diagram for MEW9630AB02
