01 - Cover Sheet

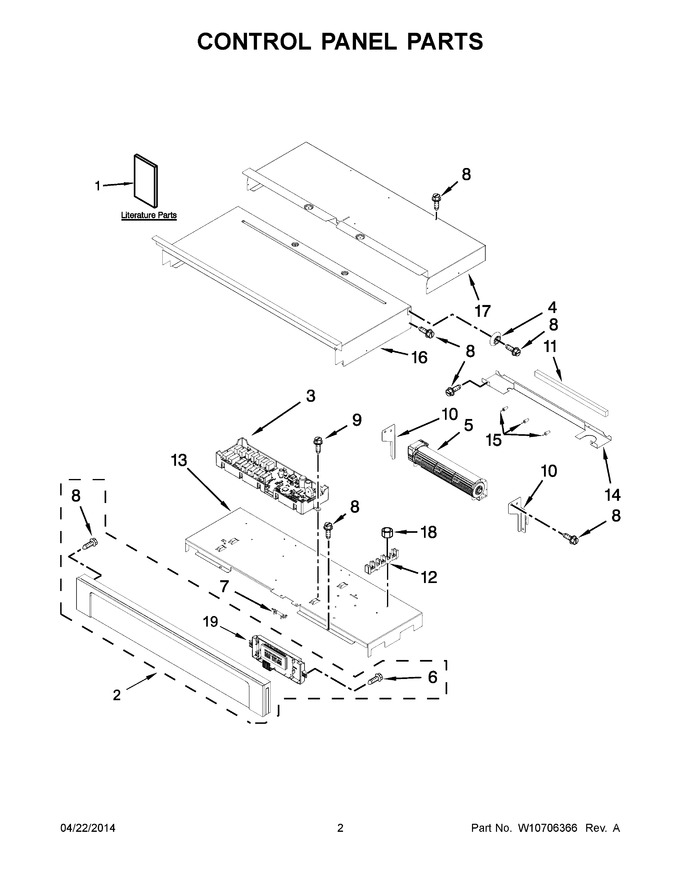

02 - Control Panel Parts


03 - Upper Oven Parts


04 - Lower Oven Parts


05 - Upper Oven Door Parts


06 - Lower Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10351242		Installation Instructions		Appelez-nous	-
1	W10669240		Use & Care Guide		Appelez-nous	-
1	W10507057		Tech Sheet		Appelez-nous	-
2	W10674150		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
2	W10674151		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	W10712114		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10674149)		Appelez-nous	-
3	W10803217		Board, Mrc2 Main   (Replaces: W10496290)				$ 396.93
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	WPW10661038		Blower (lower)   (Replaces: W10661038)				$ 259.23
5	W10641253		Blower (upper)				$ 127.63
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545291		Fuse, Thermal   (Replaces: W10545291)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W10318193		Chassis, Cover Top Front 27``				$ 136.08
17	W10318195		Chassis, Cover Top Back 27``				$ 111.04
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
19	W10532438		Board, Mrc2 Display				$ 431.08
