Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10347597 Assembly, Window Pack   (Replaces: W10347597) Special Order $ 294.07

2 W10812024 Spring, Door Glass Fixation   (Replaces: W10284285) Special Order $ 165.76

3 W10828565 Screw (black)   (Replaces: 7101P635-60) Special Order $ 7.85

4 WPW10612925 Badge   (Replaces: W10612925) In-Stock Immediately $ 42.36

5 WPW10320793 Assembly, Liner   (Replaces: W10320793) Special Order $ 337.34

6 W11578949 Hinge, Door   (Replaces: W10282976) Special Order $ 80.56

7 W10587558 Assembly, Door Glass (black) Appelez-nous -
7 W10587557 Assembly, Door Glass (stainless) Appelez-nous -
7 W10587559 Assembly, Door Glass (white) Appelez-nous -
8 W10653413 Assembly, Door Handle (stainless) Special Order $ 321.14

9 WPW10284902 Liner, Inner Glass   (Replaces: W10618123) Special Order $ 229.81

10 W10853628 Bracket, Glass   (Replaces: W10284297) Special Order $ 163.86

11 WP3196183 Screw   (Replaces: 3196183) In-Stock Immediately $ 8.18

12 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

13 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

14 WPW10392683 Bumper, Rail   (Replaces: W10392683) Special Order $ 10.12

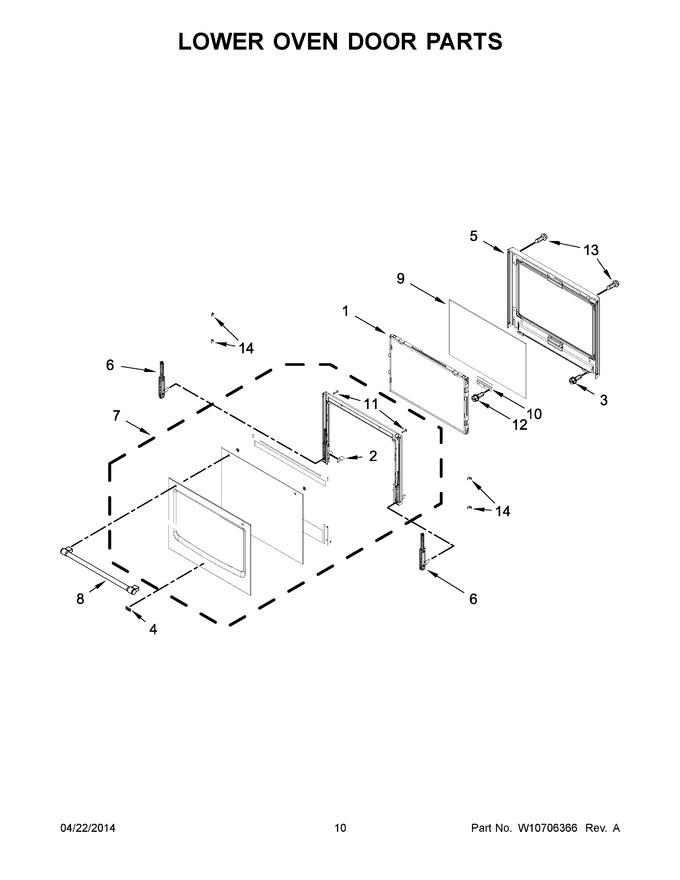

    View Diagram in Separate Window     Print Icon   Print Part List
