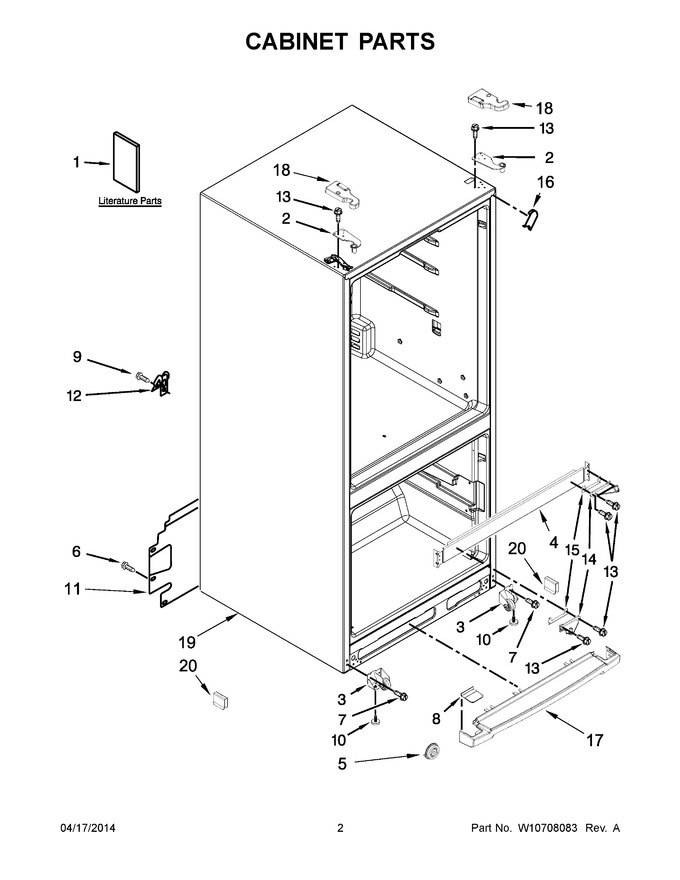

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10460646		Use & Care Guide		Appelez-nous	-
1	W10536929		Service And Wiring Sheet		Appelez-nous	-
1	W10452525		Energy Label		Appelez-nous	-
2	W11573371		Hinge, Top (right Hand)   (Replaces: W10546299)			Immediately	$ 24.87
2	W10546298		Hinge, Top (left Hand)				$ 70.15
3	WPW10359256		Roller, Front (left Hand)   (Replaces: W10359256)			Immediately	$ 51.83
3	WPW10359255		Roller, Front (right Hand)   (Replaces: W10359255)			Immediately	$ 100.64
4	N/P		Rail, Center (not Serviced)		Appelez-nous	-
5	W10331226		Drum, Toe Grille				$ 47.42
6	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	W10353930		Cover, Toe Grille (black)				$ 85.34
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
11	W10636716		Cover, Unit   (Replaces: W10444800)				$ 105.27
12	549193		Clamp, Power Cord				$ 14.06
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WPW10521411		Hinge, Center (left Hand)   (Replaces: W10521411)			Immediately	$ 77.49
14	WPW10521409		Hinge, Center (right Hand)   (Replaces: W10521409)			Immediately	$ 38.22
15	WPW10450363		Shim, Center Hinge   (Replaces: W10450363)			Immediately	$ 25.34
16	W11252732		Corner Filler (black)   (Replaces: W10283960)				$ 13.07
17	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 162.80
18	W10465771		Cover, Hinge (left Hand (black))				$ 19.76
18	W10465770		Cover, Hinge (right Hand (black))				$ 22.77
19	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 11.53
