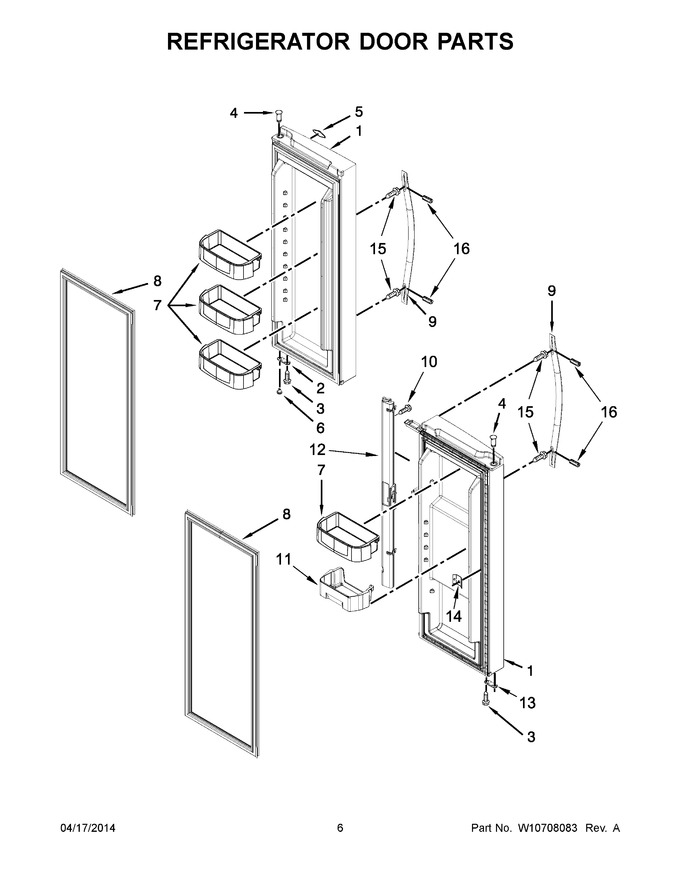

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10413518 | Refrigerator Door (includes No.8) (right Hand (black)) (Replaces: W10413518) |
|
$ 637.16 | |||||
| 1 | LW10413522 | Refrigerator Door (includes No.8) (left Hand (black)) (Replaces: W10413522) |
|
$ 478.29 | |||||
| 2 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | W11178521 | Badge, Whirlpool (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 8 | W10460610 | Gasket, Rc (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 9 | W11459378 | Handle Assembly (stainless) (Replaces: W10356566) |
|
Immediately | $ 183.89 | ||||
| 10 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 11 | WPW10326335 | Shallow Bin (Replaces: W10326335) |
|
Immediately | $ 58.46 | ||||
| 12 | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10624448) |
|
$ 241.66 | |||||
| 13 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 14 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 15 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 16 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 5.04 |
