01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

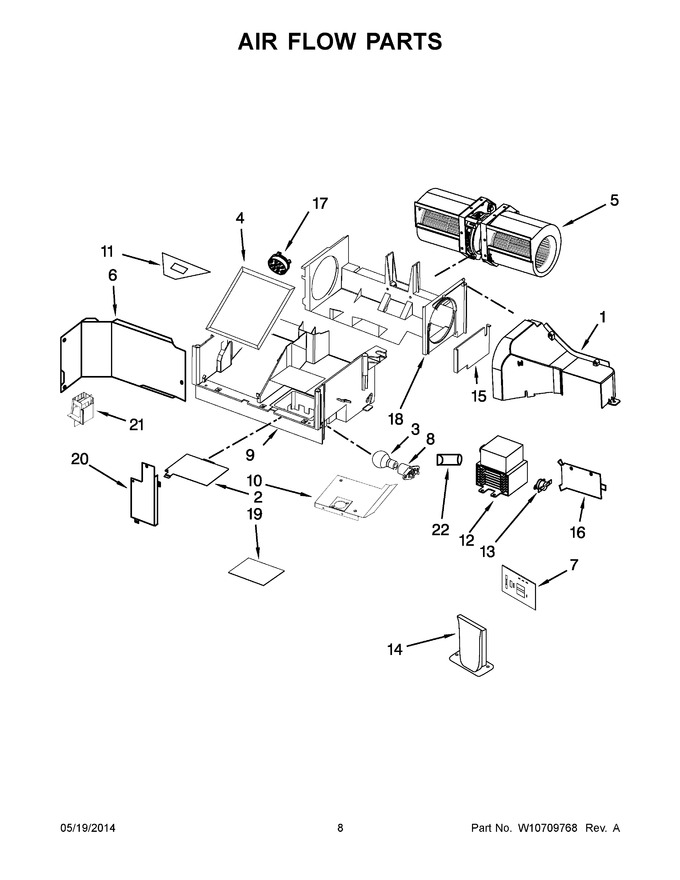

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245181 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 8.25 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.94 | ||||
| 4 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 18.19 | ||||
| 5 | W10409198 | Motor, Fan Assembly |
|
$ 175.21 | |||||
| 6 | W10245210 | Air Guide,plate |
|
- | |||||
| 7 | W10422269 | Filter, Noise |
|
Immediately | $ 30.41 | ||||
| 8 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 31.38 | ||||
| 9 | W10640882 | Base Plate, Air Guide |
|
- | |||||
| 10 | W10245179 | Support, Sensor |
|
$ 77.72 | |||||
| 11 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 12 | W10844213 | Magnetron (Replaces: W10574735) |
|
Immediately | $ 321.36 | ||||
| 13 | W10491433 | Thermostat, Magnetron |
|
$ 82.36 | |||||
| 14 | W10164716 | Plate, Waterproof |
|
$ 30.03 | |||||
| 15 | W10245182 | Cover, Right Duct |
|
- | |||||
| 16 | W10313274 | Bracket, Filter Board |
|
$ 29.09 | |||||
| 17 | W10245178 | Sensor, Humidity |
|
$ 159.31 | |||||
| 18 | W10640880 | Holder, Hood Fan Motor |
|
- | |||||
| 19 | W10245212 | Cavity Lamp Foil |
|
- | |||||
| 20 | W10245214 | Cover, Air Guide Sensor |
|
$ 34.36 | |||||
| 21 | W10640883 | Plate, Sealing Air Guide |
|
- | |||||
| 22 | 4393605 | Cover, Terminal Magnetron |
|
- |
