01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

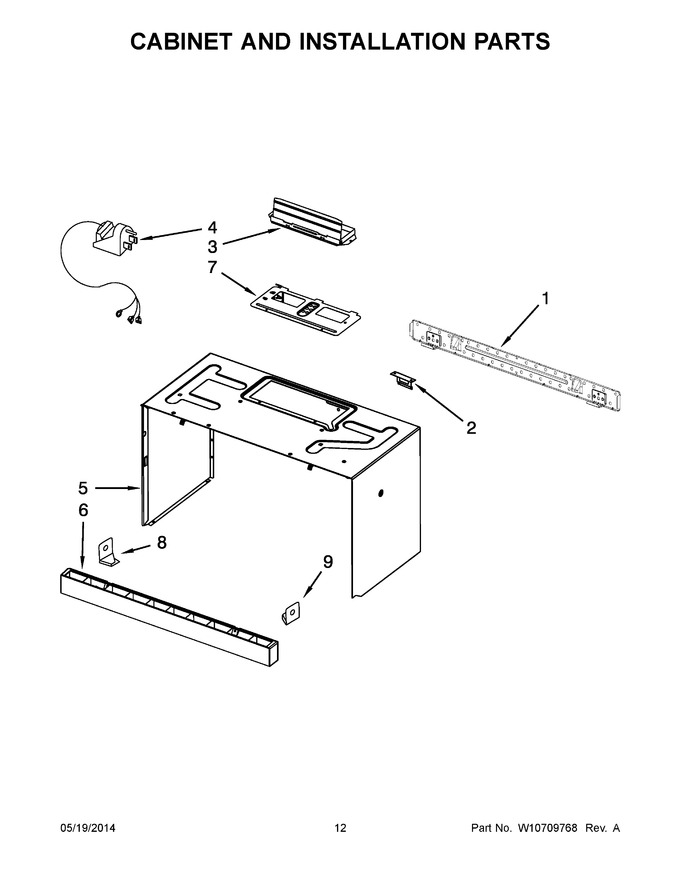

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 22.22 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 33.48 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 76.13 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 19.40 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 267.76 | |||||
| 6 | W10245216 | Grille, Vent (stainless) |
|
$ 130.20 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W11026306 | Vent Holder, Left (white) (Replaces: W10393278) |
|
Immediately | $ 6.80 | ||||
| 9 | W10703282 | Vent Holder, Right (white) (Replaces: W10393276) |
|
$ 9.90 | |||||
| NI | W10821385 | Miscellaneous, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 93.35 | ||||
| NI | W10190020 | Miscellaneous, Template, Upper |
|
$ 56.21 | |||||
| NI | W10138802 | Miscellaneous, Screw |
|
$ 10.29 | |||||
| NI | W10463325 | Miscellaneous, Main Harness |
|
- | |||||
| NI | W10539840 | Miscellaneous, Ground Wire To Connect Pcb (Replaces: 8205696) |
|
$ 22.57 | |||||
| NI | W10543255 | Miscellaneous, Harness, Hood Lamp To Turntable Motor |
|
$ 121.73 |
