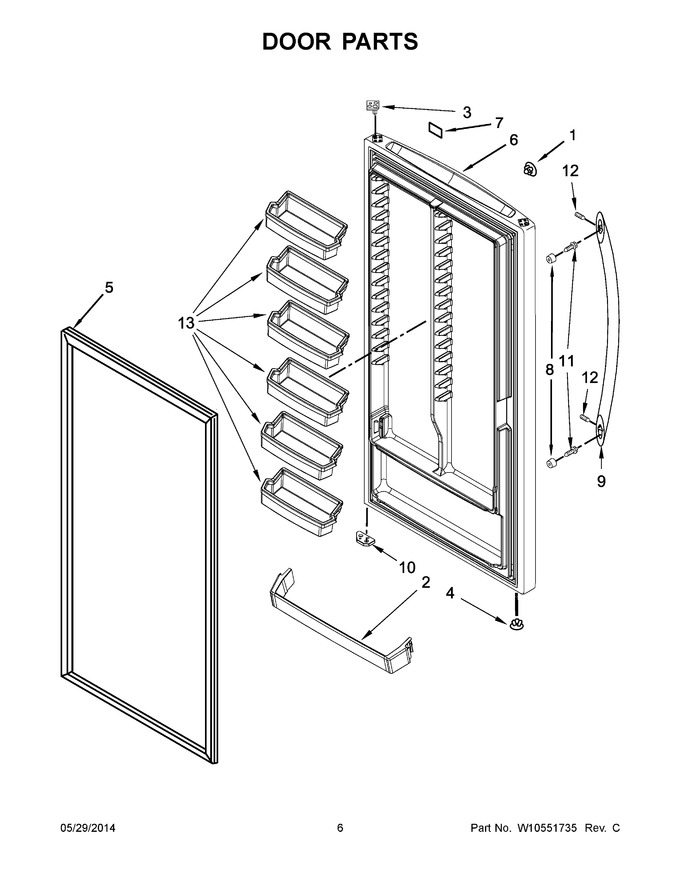

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 99.84 | |||||
| 3 | 2-81124-001 | Stop, Door (natural) |
|
$ 31.15 | |||||
| 4 | 3-24898-007 | Plug, Vent |
|
$ 11.34 | |||||
| 5 | WP4-65151-004 | Gasket, Door (white) (Replaces: 4-65151-004) |
|
$ 382.94 | |||||
| 6 | 4-82827-079 | Door Assembly |
|
- | |||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2-82532-001) |
|
Immediately | $ 9.66 | ||||
| 9 | WPW10127761K | Handle (white) (Replaces: W10127761) |
|
$ 196.00 | |||||
| 10 | 2-81125-001 | Stop, Door (natural) |
|
- | |||||
| 11 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 12 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 13 | WP4-82576-001 | Assembly, Bin (Replaces: 4-82576-001) |
|
$ 83.29 |
