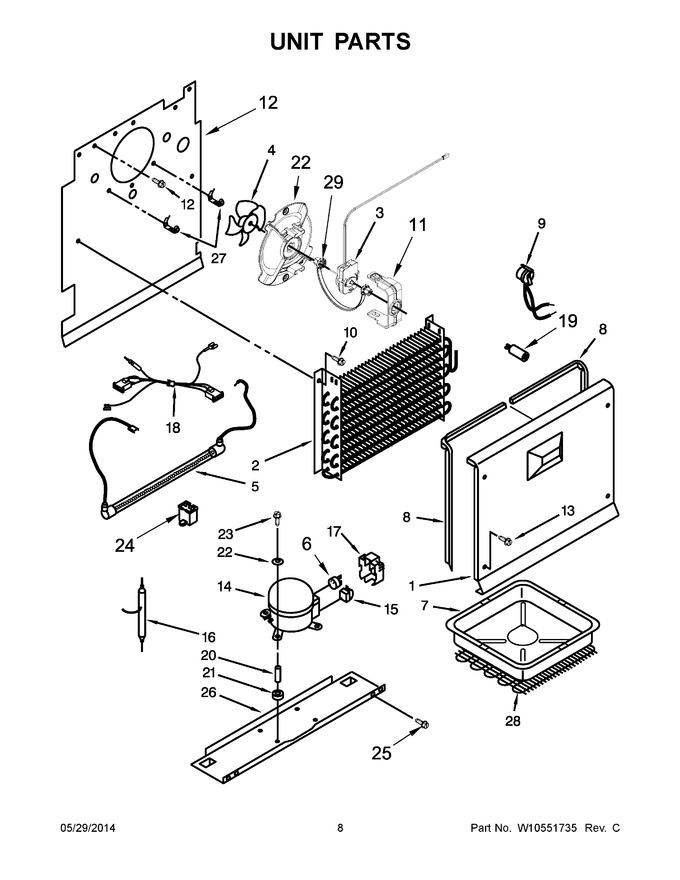

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10452370 | Cover, Evaporator |
|
$ 237.73 | |||||
| 2 | W10455861 | Evaporator |
|
$ 257.12 | |||||
| 3 | W11780227 | Motor, Fan (Replaces: W10236142) |
|
Immediately | $ 149.10 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 5 | WPW10486820 | Heater, Defrost (Replaces: W10419550) |
|
$ 236.02 | |||||
| 6 | WP2183456 | Protector, Overload (Replaces: 2-34286-037) |
|
$ 147.19 | |||||
| 7 | 4-82674-001 | Pan, Drain |
|
- | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right Side) (Replaces: 3-60180-001) |
|
$ 250.95 | |||||
| 8 | 3-60180-002 | Gasket, Cover Evaporator (left Side) |
|
$ 29.09 | |||||
| 9 | WPW10491891 | Bi-metal, Defrost (Replaces: W10491891) |
|
$ 99.23 | |||||
| 10 | 60001022 | Screw (Replaces: 3-80732-004) |
|
$ 66.41 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W10452115 | Plate, Evaporator Mounting |
|
$ 263.14 | |||||
| 13 | W10451793 | Screw |
|
- | |||||
| 14 | W10309994 | Compressor (Replaces: 4-32972-143) |
|
Immediately | $ 643.55 | ||||
| 15 | WPW10466655 | Relay, Start (Replaces: W10466655) |
|
$ 135.11 | |||||
| 16 | 4007A | Drier (Replaces: 3-34960-001) |
|
Immediately | $ 15.05 | ||||
| 17 | W10393770 | Cover (Replaces: 3-35171-003) |
|
$ 115.11 | |||||
| 18 | W10507269 | Harness, Fan |
|
$ 119.45 | |||||
| 19 | 3-23995-014 | Plastic, Grommet |
|
- | |||||
| 21 | 1-32965 | Grommet |
|
- | |||||
| 22 | W10457575 | Shroud, Evaporator Motor |
|
$ 29.98 | |||||
| 23 | 8210220 | Bolt, Compressor (Replaces: 2-82082-001) |
|
- | |||||
| 24 | 3-35956-013 | Capacitor |
|
$ 121.12 | |||||
| 25 | WP3-24838-048 | Screw (Replaces: 3-24838-048) |
|
$ 8.33 | |||||
| 26 | WPW10470133 | Pan, Compressor Mounting (Replaces: W10470133) |
|
$ 101.79 | |||||
| 27 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 28 | W10451951 | Condenser |
|
$ 300.73 | |||||
| 29 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| NI | N/P | Refrigerant Charge 6.2 Oz. (r-134a) |
|
- |
