New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10526071 Instructions, Installation Appelez-nous -
1 W10669248 Use & Care Guide Appelez-nous -
1 W10311752 Tech Sheet Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
2 W10655125 Set, Grates (black) Special Order $ 309.74

3 WPW10299233 Set, Burner Cap (black)   (Replaces: W10299233) Special Order $ 210.99

4 WPW10336094 Burner Head (center)   (Replaces: W10336094) Special Order $ 227.81

4 WPW10406797 Burner Head, Rapid (12k) (right Front)   (Replaces: W10406797) Special Order $ 92.91

4 WPW10406243 Burner Head, Auxiliary (6k) (left Rear & Right Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4 WPW10406878 Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

5 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

6 WPW10650403 Knob (stainless)   (Replaces: W10650403) Special Order $ 171.37

7 W11022684 Panel, Manifold (stainless)   (Replaces: W10664102) Special Order $ 337.26

8 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

9 W10518258 Bracket, Cooktop Support Appelez-nous -
10 4396096RB Griddle   (Replaces: W10297135) Special Order $ 282.24

11 WPW10171140 Set, Fish Burner Cap (black)   (Replaces: W10171140) Special Order $ 168.47

12 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

13 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61

14 WP3801F656-51 Bracket, Anti Tip   (Replaces: 3801F656-51) In-Stock Immediately $ 6.11

NI W10225701 Wiring Harness Parts, Harness, Sensor Special Order $ 184.15

NI WP4159193 Wiring Harness Parts, Screw, Ground   (Replaces: 7101P027-60) Special Order $ 5.07

NI W10841090 Wiring Harness Parts, Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -
NI 8019P026-60 Wiring Harness Parts, Clip, Wire Appelez-nous -
NI W10683008 Wiring Harness Parts, Harness, Main Appelez-nous -
NI W10408058 Wiring Harness Parts, Harness, Spark Special Order $ 77.20


    View Diagram in Separate Window     Print Icon   Print Part List

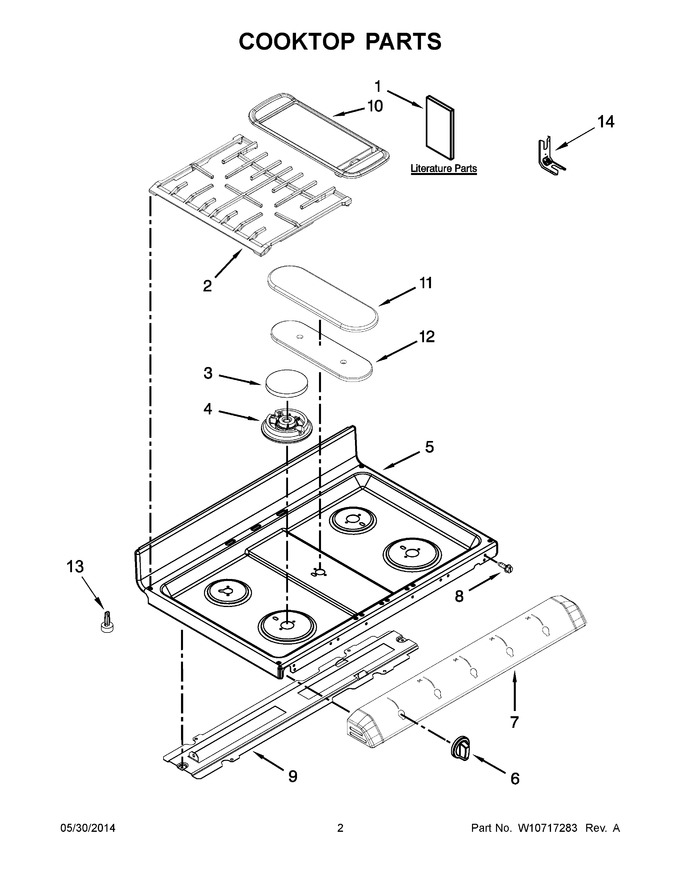

Diagram for MGT8820DS00
