Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left Hand)) Special Order $ 92.84

1 W10319111 Support, Backguard (black (right Hand)) Special Order $ 43.80

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 W10097310 Console (stainless) Special Order $ 116.84

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

5 W10878903 Electronic, Control Mrc2   (Replaces: W10365413) Special Order $ 444.14

6 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

7 W10664073 Assembly, Membrane (including Bracket) (stainless) Special Order $ 299.80

8 W10278697 Shield, Vent In-Stock Immediately $ 183.33

9 W10296773 Cover, Backguard Special Order $ 194.52

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56


    View Diagram in Separate Window     Print Icon   Print Part List

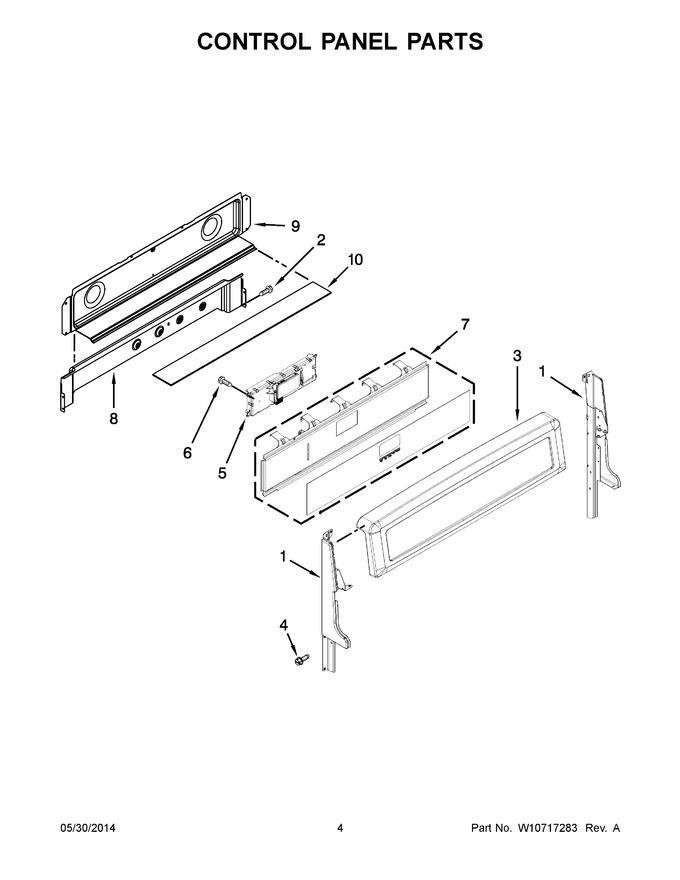

Diagram for MGT8820DS00
