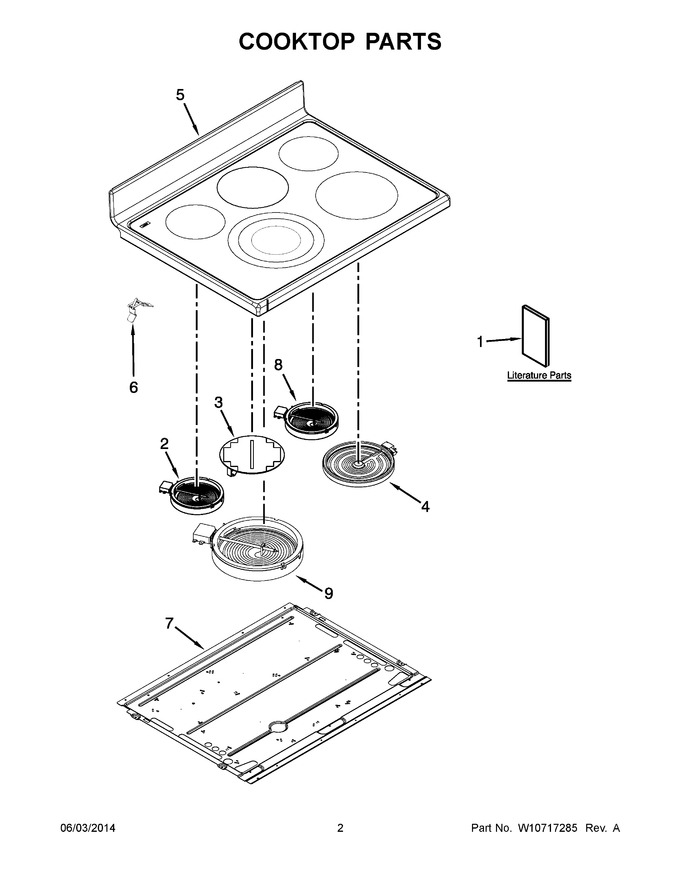

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430958		Instructions, Installation		Appelez-nous	-
1	W10669246		Use & Care Guide		Appelez-nous	-
1	W10696177		Tech Sheet		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W11171119		Element (1200w) (left Rear)   (Replaces: 8273994)			Immediately	$ 203.06
3	WP9762851		Element, Warm Zone (120v) (center Rear)   (Replaces: 9762851)			Immediately	$ 261.32
4	WPW10251107		Element (3200w) (right Front)   (Replaces: W10251107)				$ 321.84
5	W10719622		Cooktop (black)   (Replaces: W10664054)				$ 586.26
6	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
7	WPW10260946		Support, Element   (Replaces: W10260946)				$ 121.59
8	WPW10270604		Element (700w) (right Rear)   (Replaces: W10270604)				$ 201.13
9	W11101459		Element, Triple (2700w) (left Front)   (Replaces: W10259005)			Immediately	$ 194.15
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10668433		Harness, Main		Appelez-nous	-
NI	W10406512		Harness, Infinite Switch (left)				$ 129.02
NI	W10406501		Harness, Infinite Switch (right)				$ 18.85
NI	W11171874		Harness, Cooktop   (Replaces: W10219254)				$ 211.65
NI	W10225701		Harness, Sensor				$ 165.74
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.56
NI	8019P013-60		Clip, Wire Lock				$ 14.13
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 7.98
NI	W11226497		Cord, Power   (Replaces: W10233363)			Immediately	$ 99.50
