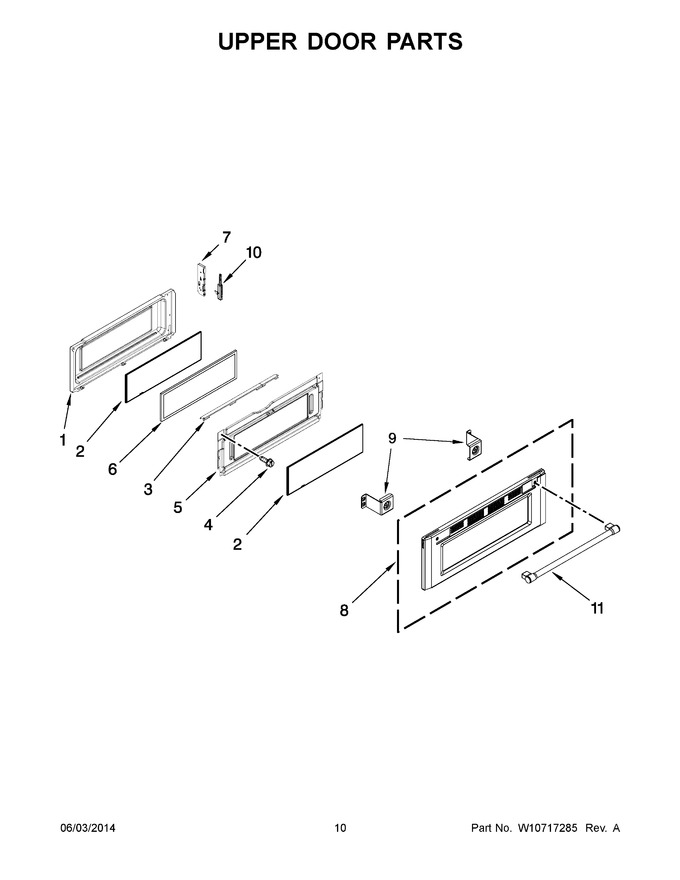

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door (Replaces: W10485720) |
|
$ 301.00 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W10272707) |
|
$ 179.33 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 171.93 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 252.42 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 99.18 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 8 | W10677255 | Assembly, Door (stainless) |
|
- | |||||
| 9 | W10645182 | Bracket, Handle (Replaces: W10296658) |
|
$ 41.73 | |||||
| 10 | W10485731 | Hinge, Door (left) |
|
$ 46.88 | |||||
| 10 | W10485730 | Hinge, Door (right) |
|
$ 46.79 | |||||
| 11 | W10832693 | Assembly, Door Handle (stainless) (Replaces: W10665843) |
|
Immediately | $ 324.58 |
