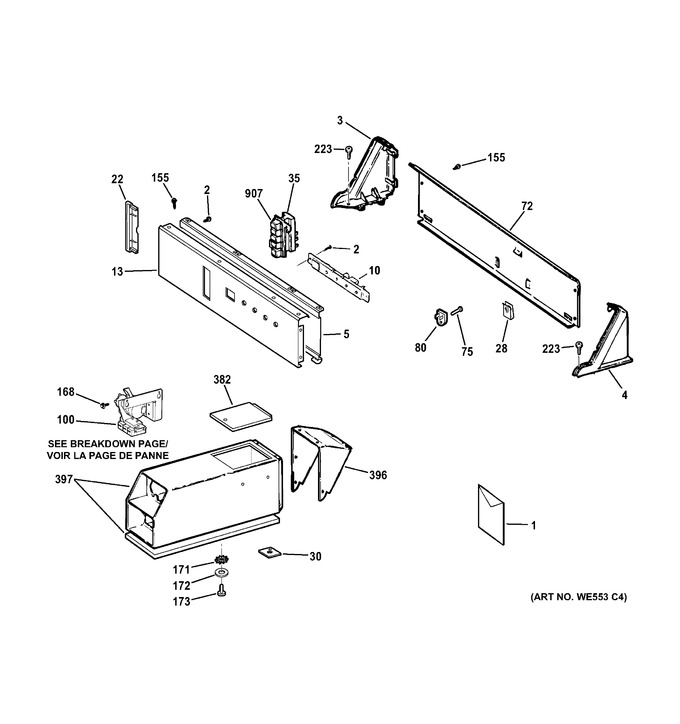

1 - Control Panel & Coin Box Assembly


3 - Front Panel & Door


4 - Cabinet & Top Panel


5 - Drum


6 - Blower & Motor Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16303		Pm Label Wiring		Appelez-nous	-
1	31-16311		Pm Install Instructions		Appelez-nous	-
1	49-90307-2		Pm Owners Manual		Appelez-nous	-
2	WE02X20422		Screw 8-18x7 16		Appelez-nous	-
3	WE19M1451		End Cap Lh Bk		Appelez-nous	-
4	WE19M1452		End Cap Rh Bk		Appelez-nous	-
5	WE19M1360		Support Switch		Appelez-nous	-
10	WE4M313		Control Coin-op Asm		Appelez-nous	-
13	WE19M1556		Switch Trim Asm.		Appelez-nous	-
22	WE19M987		End Cap Supt		Appelez-nous	-
28	WE2M171		Speednut		Appelez-nous	-
30	WE1M533		Plate Secur Coin Box		Appelez-nous	-
35	WE4M210		P.b. Switch		Appelez-nous	-
72	WE20M343		Panel Back		Appelez-nous	-
75	WE2M173		Screw		Appelez-nous	-
80	WE4M307		Resistor (3500ohm) Beige		Appelez-nous	-
100	WE4M468		Timer & Bracket Asm.		Appelez-nous	-
155	WH2X1233		Scr 8-18 Ab Trt 5/8 S		Appelez-nous	-
168	WZ02X0468		Scr 10-32 M Hs 1/8 S		Appelez-nous	-
171	WE2M182		Washer Lock		Appelez-nous	-
172	WE02X21134		Washer		Appelez-nous	-
173	WE02X21136		Screw		Appelez-nous	-
223	WE2M189		Screws		Appelez-nous	-
382	WH42X10804		Door And Latch Asm		Appelez-nous	-
396	WH42X10806		Adapter Meter Case		Appelez-nous	-
397	WE20M403		Meter Case Asm.		Appelez-nous	-
907	WD9X206		Pushbutton		Appelez-nous	-
