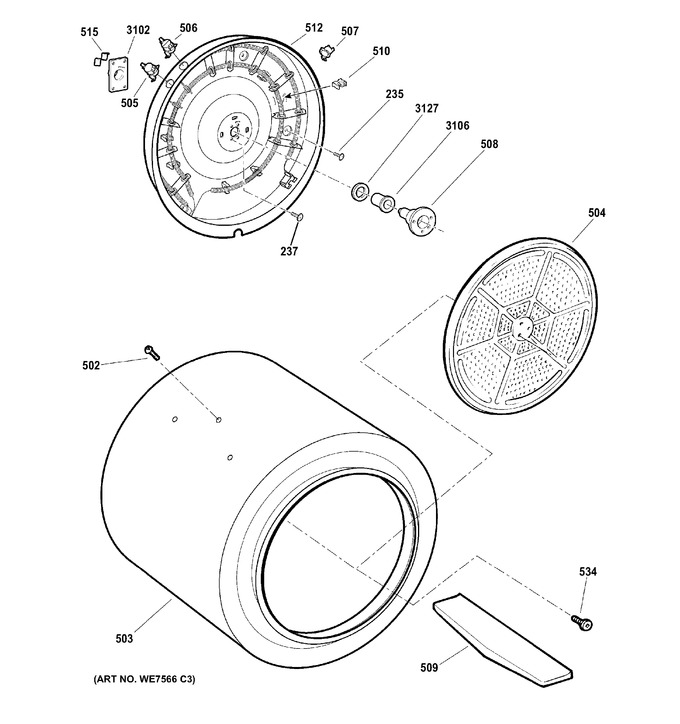

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 503 | WE21M65 | Drum Asm |
|
- | |||||
| 504 | WW02F00827 | Deflector Heat (Replaces: WE14M77) |
|
$ 66.75 | |||||
| 505 | WE4M160 | Thermostat Safety Left |
|
- | |||||
| 506 | WE4M309 | Thermostat Inlet Blue |
|
- | |||||
| 507 | WG04F02270 | Thermostat Hi-limit (Replaces: WE4M137) |
|
Immediately | $ 17.14 | ||||
| 508 | WE25M40 | Shaft & Bracket Ass'y (Replaces: WE3X39) |
|
Immediately | $ 157.05 | ||||
| 509 | WE14M236 | Baffle |
|
- | |||||
| 510 | WG04F05016 | Ceramic Insulator (Replaces: WE1M452) |
|
$ 3.64 | |||||
| 512 | WW03L00276 | Heater Asm. Coin (Replaces: WE11M27) |
|
Immediately | $ 166.86 | ||||
| 515 | WE1M1015 | Ground Strap Asm |
|
- | |||||
| 534 | WW01A00456 | Screw #10 (Replaces: WE2M163) |
|
Immediately | $ 3.57 | ||||
| 3102 | WG04A00067 | Bearing Retainer (Replaces: WE1M300) |
|
$ 7.33 | |||||
| 3106 | WE1M462 | Sleeve Drum |
|
$ 38.53 | |||||
| 3127 | WG04F00001 | O Ring (Replaces: WE1M461) |
|
$ 26.08 |
