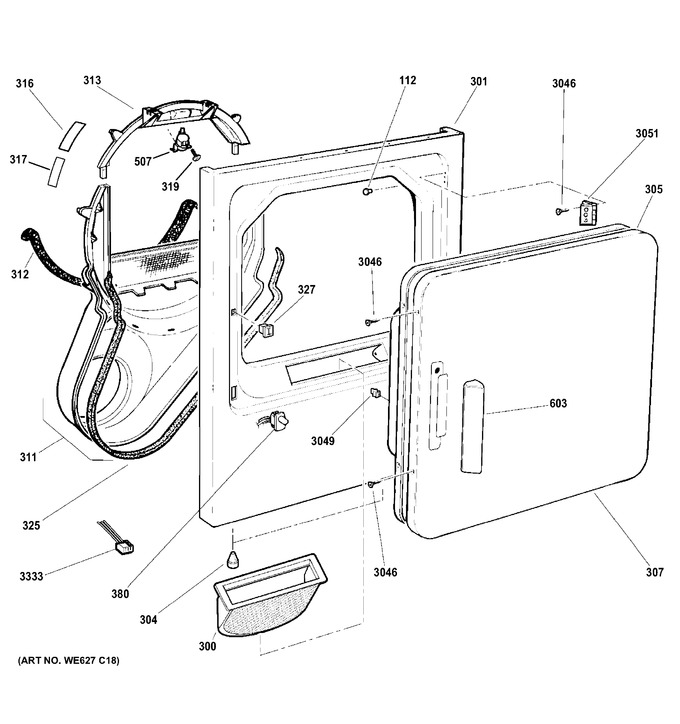

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet & Top Panel
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01A00517 | Beauty Button-wht (Replaces: WR2X8693) |
|
$ 4.37 | |||||
| 300 | WG04F00416 | Lint Filter Metal Mesh (Replaces: WE18M30) |
|
Immediately | $ 40.73 | ||||
| 301 | WE20M528 | Front Panel |
|
- | |||||
| 304 | WG04L00345 | Stabilizing Leg Asm. (Replaces: WE2M188) |
|
Immediately | $ 3.64 | ||||
| 305 | WE10M171 | Inner Door Asm. W |
|
- | |||||
| 307 | WW01L01133 | Door Panel (white) (Replaces: WE10M102) |
|
$ 149.43 | |||||
| 311 | WW02F00592 | Air Duct Assy (Replaces: WE14M92) |
|
Immediately | $ 175.43 | ||||
| 312 | WE9M30 | Felt |
|
- | |||||
| 313 | WE3M56 | Bearing Top |
|
- | |||||
| 316 | WG01F01524 | Slide Green (Replaces: WE1M1067) |
|
Immediately | $ 34.20 | ||||
| 317 | WE1M504 | Slide White |
|
Immediately | $ 40.66 | ||||
| 319 | WD21M131 | Screw Ground Front |
|
- | |||||
| 325 | WW02L00040 | Gasket (seal) (Replaces: WE00M169) |
|
Immediately | $ 3.93 | ||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 507 | WE4M261 | Thermostat |
|
- | |||||
| 603 | WE1M1026 | Handle Door |
|
- | |||||
| 3046 | WW02A00097 | Screw #8 (Replaces: WE2M196) |
|
$ 3.57 | |||||
| 3049 | WW02A00004 | Strike (Replaces: WE1X1192) |
|
Immediately | $ 3.57 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M505) |
|
Immediately | $ 8.93 | ||||
| 3333 | WE5M39 | Harness Sensor |
|
- |
