SELECT A DIAGRAM

Diagram for 1 - Backsplash, Blower & Motor Assembly
1 - Backsplash, Blower & Motor Assembly

Diagram for 2 - Front Panel & Door
2 - Front Panel & Door

Diagram for 3 - Cabinet & Top Panel
3 - Cabinet & Top Panel

Diagram for 4 - Drum
4 - Drum

Diagram for 5 - Gas Valve & Burner Assembly
5 - Gas Valve & Burner Assembly


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
235 WE2M307 Scr 10-16 X 1/2 Ab Appelez-nous -
272 WE2M308 Scr 8-15 X 7/16 Ab Appelez-nous -
709 WE1X1148 Orifice Appelez-nous -
710 WE1X1076 Leak Limiter Appelez-nous -
712 WE14M159 Gas Valve & Pipe Asm. Ng Special Order $ 456.54

715 WD2M101 Scr Appelez-nous -
716 WE14M104 Burner Asm. Special Order $ 255.39

717 WW01F01432 Igniter Asm   (Replaces: WE4M449) In-Stock Immediately $ 135.99

723 WE13M52 Bracket Gas Valve Appelez-nous -
729 279834 Coil Dual   (Replaces: WE4X692) In-Stock Immediately $ 29.57

730 WE2X333 Screw (coil Mtg Brkt) Appelez-nous -
731 58804AB Coil Main   (Replaces: WE4X693) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

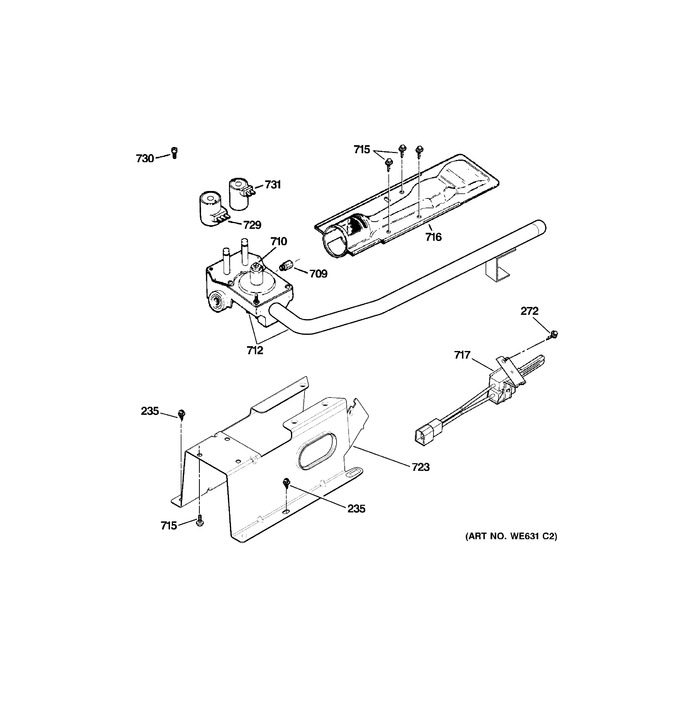

Diagram for DNCD450GGCWC
