SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment

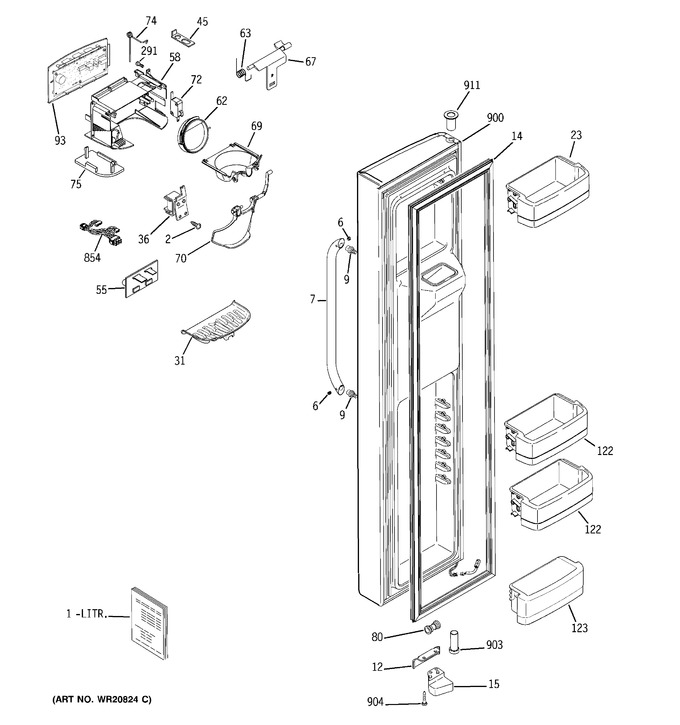

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	200D4627P001		Chute Ice		Appelez-nous	-
1	200D1967G199		Door Prefoam Asm Ff Bow		Appelez-nous	-
1	225D5513G019		Door Outer Bow Fz		Appelez-nous	-
1	200D1968G351		Door Prefoam Asm Fz Bow		Appelez-nous	-
1	200D2680P001		Spout Water Fill		Appelez-nous	-
1	200D7669G006		Harness Comm Sub Asm		Appelez-nous	-
1	523891P228		Sleeve Vinyl		Appelez-nous	-
1	200D1330G049		Door Outer Bow Ff Ss		Appelez-nous	-
1	200D1684G042		Door Asm Fz Bow Ss		Appelez-nous	-
1	200D1685G054		Door Asm Ff Bow Ss		Appelez-nous	-
1	225D5623P005		Coupon Door Sxs		Appelez-nous	-
1	225D5623P006		Coupon Door Sxs		Appelez-nous	-
1	31-51661		Mini Wiring Manual		Appelez-nous	-
1	49-60646		Pm Guide Owners		Appelez-nous	-
2	8911412P016		Housing		Appelez-nous	-
2	186D1954P009		Cap Door Bow Ff Btm		Appelez-nous	-
2	200D6114P001		Door Inner Ff 23 And 25		Appelez-nous	-
2	200D7517P001		Door Inner Fz		Appelez-nous	-
2	238C1017P024		Thimble Door		Appelez-nous	-
2	238C1160P003		Thimble Door Btm Fz		Appelez-nous	-
2	238C4323P003		Gasket Ice Chute		Appelez-nous	-
2	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
2	186D1957P009		Cap Door Bow Fz Btm		Appelez-nous	-
2	200D1664P004		Tube Plastic Formed		Appelez-nous	-
6	200D2598P002		Stiffner Door		Appelez-nous	-
6	8911407-A6		Terminal Splice		Appelez-nous	-
6	WK8NX75GH1KO		Lead Asm (ref 8911402)		Appelez-nous	-
6	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 8.58
7	WR01L04604		Tubulur Handle Asm   (Replaces: WR12X10855)				$ 62.89
7	200D6110P016		Dispenser Recess		Appelez-nous	-
7	WK8BX75GH1KO		Lead Asm (ref 8911402)		Appelez-nous	-
9	524977P01		Anchor Screw		Appelez-nous	-
9	WR02X12800		Fastener Handle Ss		Appelez-nous	-
9	WK4WX19GKOX3		Lead Asm (ref 8911402)		Appelez-nous	-
12	197D2513P001		Grommet Elect		Appelez-nous	-
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 35.73
12	203C2552P025		Tape Foam		Appelez-nous	-
14	WR24X20455		Gasket		Appelez-nous	-
15	WR02X10780		Cam Closure Ff Black		Appelez-nous	-
15	200D3558G041		Harness Comm Fz Door		Appelez-nous	-
23	WR71X10953		Module Shelf Fz		Appelez-nous	-
31	WR17X12910		Grill Recess		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 80.09
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
45	238C2226P016		Polypropylene Tape		Appelez-nous	-
55	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 14.29
58	WR17X12900		Housing Shield Disp		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 58.69
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.57
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 11.44
69	WR01F00833		Funnel Ice Disp   (Replaces: WR17X12120)				$ 48.68
70	WR01A00443		Paddle Ice Disp   (Replaces: WR17X12899)				$ 12.86
72	WR01F03637		Switch   (Replaces: WR23X10224)			Immediately	$ 15.72
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 21.44
75	WR02X13405		Cover Led Housing Shield		Appelez-nous	-
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 17.15
93	WR01F01453		Interface Dispenser Asm   (Replaces: WR55X11041)				$ 97.70
122	WR01L02896		Module Shelf Fz   (Replaces: WR71X10291)				$ 24.03
123	WR71X10501		Module Shelf Fz Fixed		Appelez-nous	-
291	WR01A01034		Screw 8-10 Pl Pnp 1/2 S   (Replaces: WR01X10221)				$ 4.20
854	WR23X10695		Harness Recess Disp		Appelez-nous	-
900	WR78X22103		Door Foam Asm Fz		Appelez-nous	-
903	WR01X10234		Thimble Door Btm Fz Blac		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
