SELECT A DIAGRAM

1 - Freezer Door

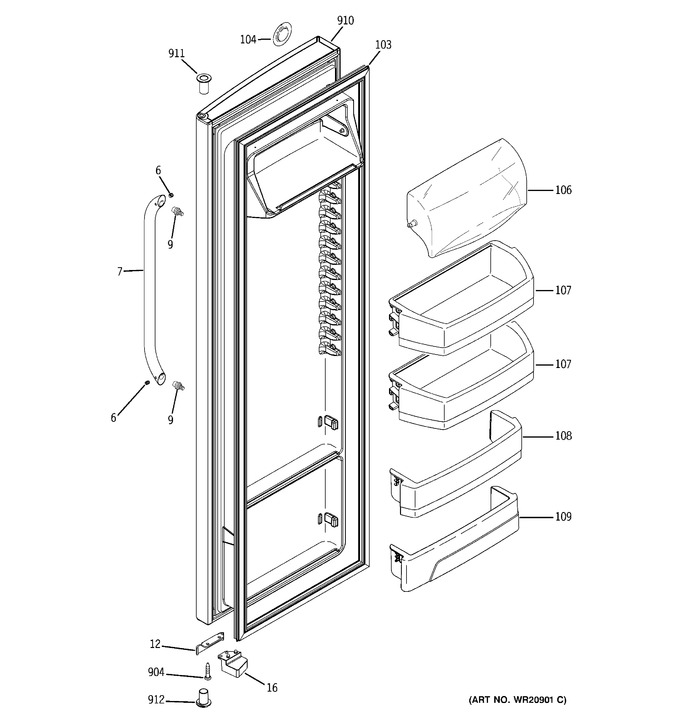

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WK8NX75GH1KO		Lead Asm (ref 8911402)		Appelez-nous	-
6	200D2598P002		Stiffner Door		Appelez-nous	-
6	8911407-A6		Terminal Splice		Appelez-nous	-
6	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 8.58
7	WR01L04604		Tubulur Handle Asm   (Replaces: WR12X10855)				$ 62.89
7	200D6110P016		Dispenser Recess		Appelez-nous	-
7	WK8BX75GH1KO		Lead Asm (ref 8911402)		Appelez-nous	-
9	WR02X12800		Fastener Handle Ss		Appelez-nous	-
9	524977P01		Anchor Screw		Appelez-nous	-
9	WK4WX19GKOX3		Lead Asm (ref 8911402)		Appelez-nous	-
12	203C2552P025		Tape Foam		Appelez-nous	-
12	197D2513P001		Grommet Elect		Appelez-nous	-
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 35.73
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 32.88
103	WR24X20456		Gasket		Appelez-nous	-
104	WR01A00028		Badge   (Replaces: WR04X10168)				$ 13.97
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 20.64
107	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
108	WR71X10858		Shelf Module Fixed Ff		Appelez-nous	-
109	WR71X11034		Fixed Shelf Ff		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22104		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
