SELECT A DIAGRAM

01 - Cover Sheet

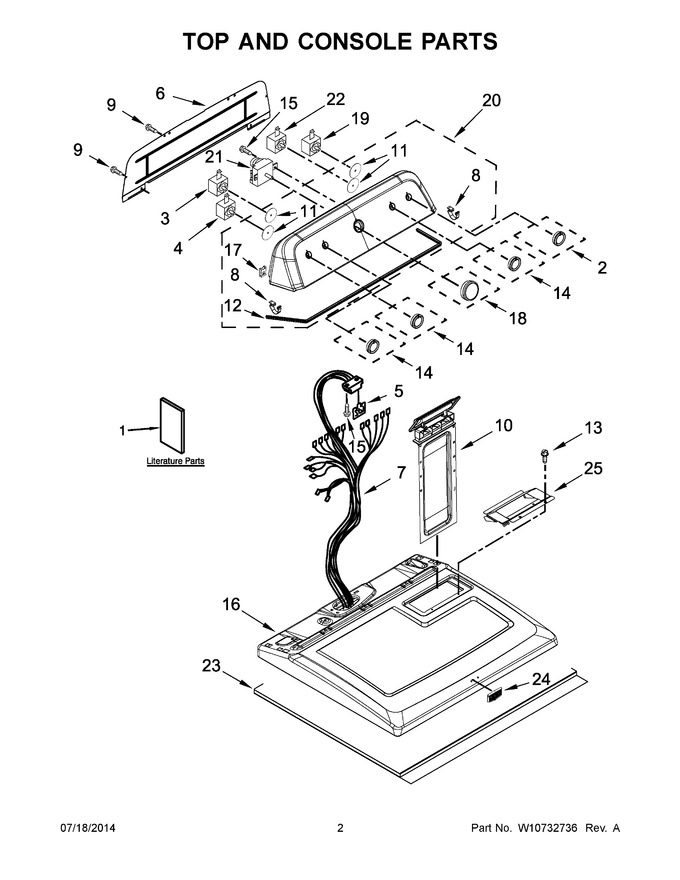

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10594781		Use And Care Guide		Appelez-nous	-
2	WPW10565871		Assembly, Push-to-start Knob (grey)   (Replaces: W10565871)			Immediately	$ 52.47
3	WPW10627711		Switch, Rotary (signal)   (Replaces: W10627711)				$ 92.41
4	W11501315		Switch, Rotary (temperature)   (Replaces: W10562712)		Appelez-nous	-
5	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 314.22
6	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 126.09
7	W10640711		Wiring Harness, Main		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
10	W11778254		Assembly, Lint Screen   (Replaces: W10508973)			Immediately	$ 52.03
11	W10645577		Seal, User Interface				$ 16.81
12	W10588162		Seal, Console		Appelez-nous	-
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 17.93
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.82
16	W11170623		Top (white)   (Replaces: W10695517)				$ 271.50
17	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
18	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 17.93
19	WPW10563095		Switch, Rotary (push To Start)   (Replaces: W10563095)			Immediately	$ 89.50
20	W10557259		Assembly, Console (white)				$ 238.84
21	WPW10642928		Assembly, Timer   (Replaces: W10642928)				$ 205.51
22	W10563094		Switch, Rotary (wrinkle Control)				$ 34.62
23	W10123956		Panel, Dampening		Appelez-nous	-
24	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
25	W10662472		Collar, Lint Chute				$ 74.16
1A	W10185993		Wiring Diagram		Appelez-nous	-
1B	W10562358		Installation Instructions		Appelez-nous	-
