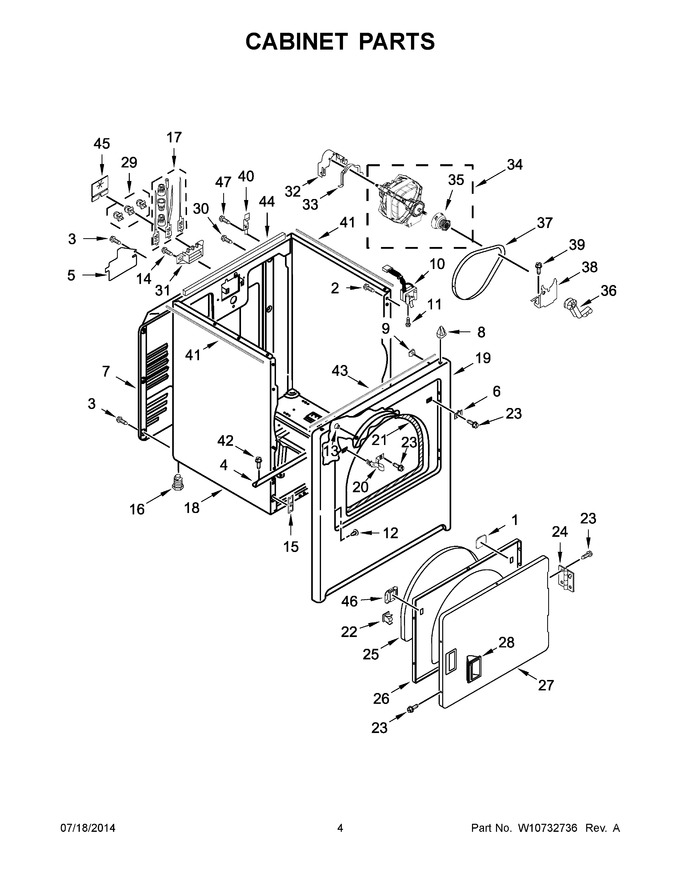

SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11173656		Cover, Door Catch   (Replaces: W10529198)				$ 7.81
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W10236073		Bracket, Cabinet		Appelez-nous	-
5	W11298298		Cover, Terminal Block   (Replaces: W10571619)				$ 89.44
6	W11684591		Plug, Strike   (Replaces: W10567345)			Immediately	$ 7.74
7	280043		Panel, Rear   (Replaces: W10571724)				$ 341.30
8	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 19.50
9	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
10	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 31.20
11	WP3395530		Screw   (Replaces: 697773)				$ 7.70
12	WP3404413		Plug, Hole   (Replaces: 3404413)			Immediately	$ 7.95
13	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
14	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
16	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 399.26
19	W10806345		Panel, Front (white)   (Replaces: W10224853)				$ 232.74
20	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
21	W11035878		Assembly, Seal And Bearing   (Replaces: W10663510)			Immediately	$ 78.78
22	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 25.29
23	WP488627		Screw   (Replaces: 342055)				$ 7.57
24	WPW10362431		Assembly, Hinge And Pin   (Replaces: W10362431)			Immediately	$ 7.91
25	W10861521		Seal, Door   (Replaces: W10389572)			Immediately	$ 58.69
26	WPW10463967		Door, Inner   (Replaces: W10463967)				$ 219.71
27	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 256.44
28	WPW10549553		Handle, Door (white)   (Replaces: W10549553)			Immediately	$ 8.21
29	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
30	W10850756		Screw   (Replaces: 8533974)				$ 7.76
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
32	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 7.82
33	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
34	279827		Assembly, Motor   (Replaces: W10396032)			Immediately	$ 191.95
35	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
36	WP691366		Idler Assembly   (Replaces: 691366)			Immediately	$ 22.47
37	WPW10198086		Belt, Drive   (Replaces: W10198086)			Immediately	$ 48.60
38	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
39	3400500		Bolt			Immediately	$ 13.37
40	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 7.82
41	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.05
42	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
43	W10316619		Seal, Spill Guard				$ 26.87
44	W10224934		Cabinet (with Seal, Spill Guard)				$ 348.93
45	W11627518		Pad, Power Cord   (Replaces: W10574733)				$ 21.46
46	WPW10529197		Bezel, Door Catch   (Replaces: W10529197)			Immediately	$ 25.46
47	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
