Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10717675 Tube, Feed Special Order $ 120.50

2 W10567637 Gasket, Feed Tube Special Order $ 34.18

3 WPW10567495 Shield, Sound   (Replaces: W10567495) Special Order $ 138.67

4 W10567498 Tub Special Order $ 410.12

5 W10567636 Guide Special Order $ 21.98

6 W10567635 Nut, Feed Tube Special Order $ 16.61

7 W11685772 Wheel, Tub   (Replaces: W10567558) Appelez-nous -
8 W10567559 Track Special Order $ 68.98

9 W10567577 Trim, Tank Left Hand (white) Special Order $ 93.85

10 W10567624 Inlet, Water Appelez-nous -
11 W10717671 Hose, Inlet Appelez-nous -
12 W10567668 Hose, Pressure Switch Appelez-nous -
13 W10567650 Switch, Pressure Special Order $ 96.31

14 W10567621 Clamp Special Order $ 37.69

15 W10567622 Cover, Inlet Appelez-nous -
16 W10567660 Bezel, Inlet Appelez-nous -
17 W10567562 Trim, Tank Right Hand (white) Special Order $ 93.32

18 W10567557 Gasket, Tub Special Order $ 172.58

19 W10567503 Trim, Tank Top (white) Appelez-nous -
20 W11165171 Stop, Track   (Replaces: W10567560) Special Order $ 16.68

21 W10567624 Inlet, Water Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

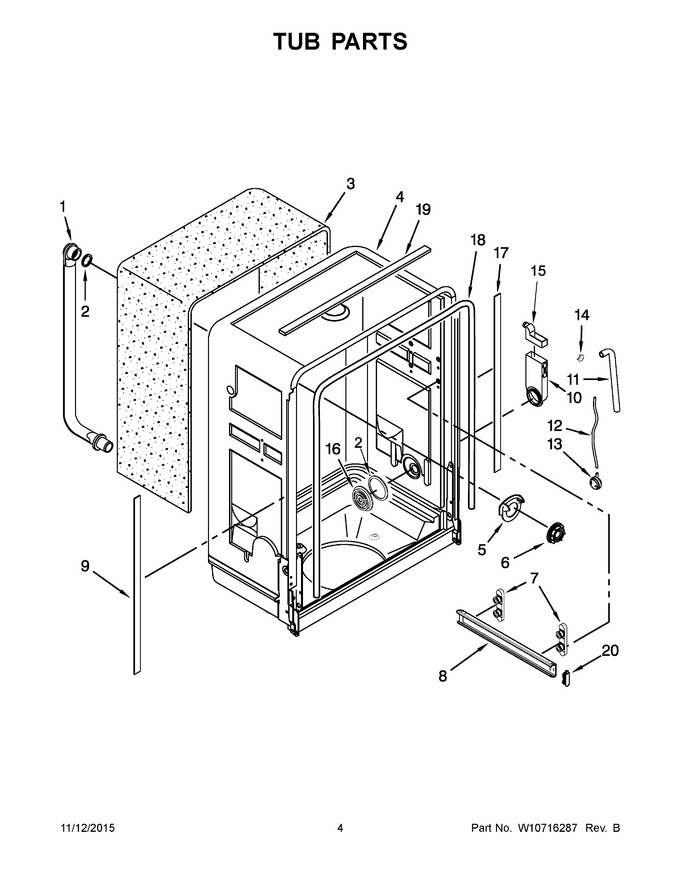

Diagram for UDT555SBDP0
