01 - Cover Sheet


02 - Control Panel And Latch Parts

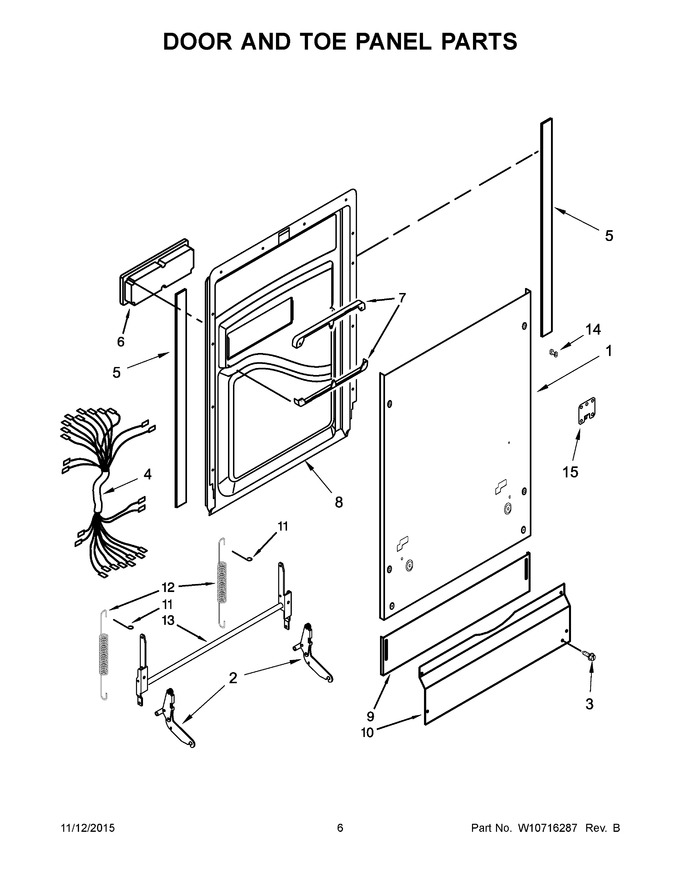

03 - Tub Parts


04 - Door And Toe Panel Parts


05 - Frame Parts


06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717651		Panel, Door				$ 91.44
2	W10717647		Hinge, Door (left Hand)				$ 51.61
3	W10517911		Screw (white)		Appelez-nous	-
4	W10717644		Wiring Harness		Appelez-nous	-
5	W10717643		Guard, Inner Door				$ 21.87
6	W10717646		Dispenser				$ 205.61
7	W10567606		Bracket, Dispenser		Appelez-nous	-
8	W10717532		Door, Inner			Immediately	$ 344.46
9	WPW10567570		Panel, Toe (white)   (Replaces: W10567570)				$ 122.48
10	WPW10567568		Panel, Access (white)   (Replaces: W10567568)				$ 103.27
11	W10567596		Pin, Door Spring				$ 15.25
12	W10717649		Spring, Door				$ 31.46
13	WPW10567602		Bracket, Hinge   (Replaces: W10567602)				$ 96.05
14	W10828676		Bracket, Panel				$ 5.95
15	W10828677		Bracket, Panel				$ 5.67
2A	W10717648		Hinge, Door (right Hand)				$ 51.61
