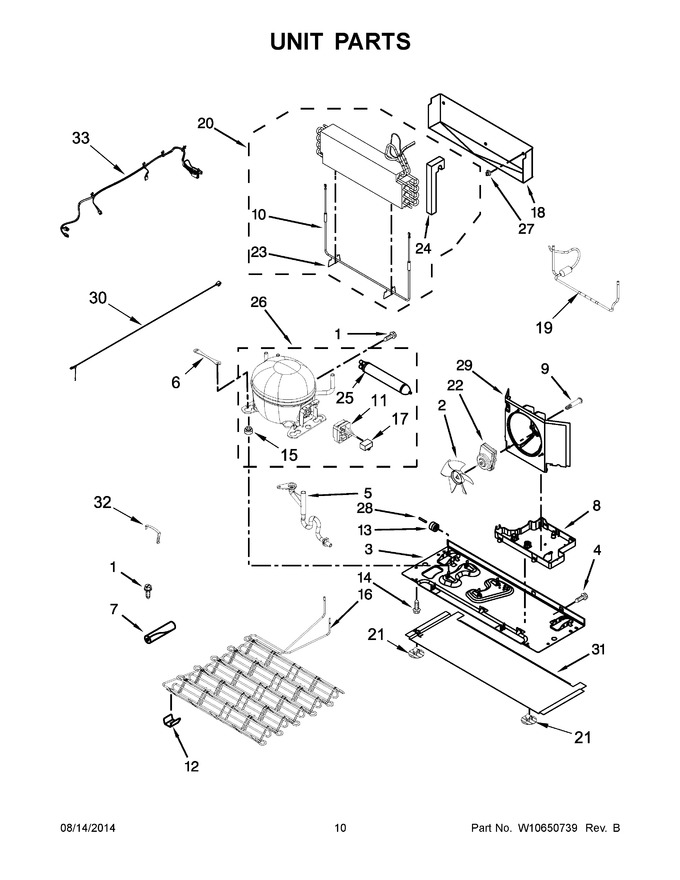

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992101 | Screw |
|
- | |||||
| 2 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 3 | W10570074 | Baseplate |
|
$ 148.34 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W11712703 | Extension, Drain (Replaces: W10553833) |
|
$ 44.85 | |||||
| 6 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 8 | W11225840 | Tray, Evaporator (Replaces: W10655371) |
|
Immediately | $ 158.27 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | W11715935 | Grommet, Air Return (Replaces: W10413009) |
|
$ 13.58 | |||||
| 16 | W11760073 | Assembly, Condenser (Replaces: W10627646) |
|
$ 168.80 | |||||
| 17 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 18 | W10512220 | Tray, Drip |
|
- | |||||
| 19 | WPW10463542 | Tube, Suction (Replaces: W10463542) |
|
$ 96.94 | |||||
| 20 | WPW10608485 | Evaporator (Replaces: W10248589) |
|
Immediately | $ 372.67 | ||||
| 21 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 22 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 23 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 24 | W10491355 | Gasket, Airdam |
|
$ 22.28 | |||||
| 25 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 26 | WPW10466675 | Compressor (Replaces: W10474685) |
|
$ 834.53 | |||||
| 27 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 82.24 | |||||
| 30 | WPW10494227 | Cord, Power (Replaces: W10494227) |
|
$ 84.70 | |||||
| 31 | W10278140 | Cover, Bottom Unit |
|
$ 94.05 | |||||
| 32 | W10204187 | Strap, Bale |
|
- | |||||
| 33 | W10528619 | Assembly, Unit Wire |
|
$ 119.45 | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | N/P | Refrigerant Charge 5.25 Oz. (r-134a) |
|
- | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 |
