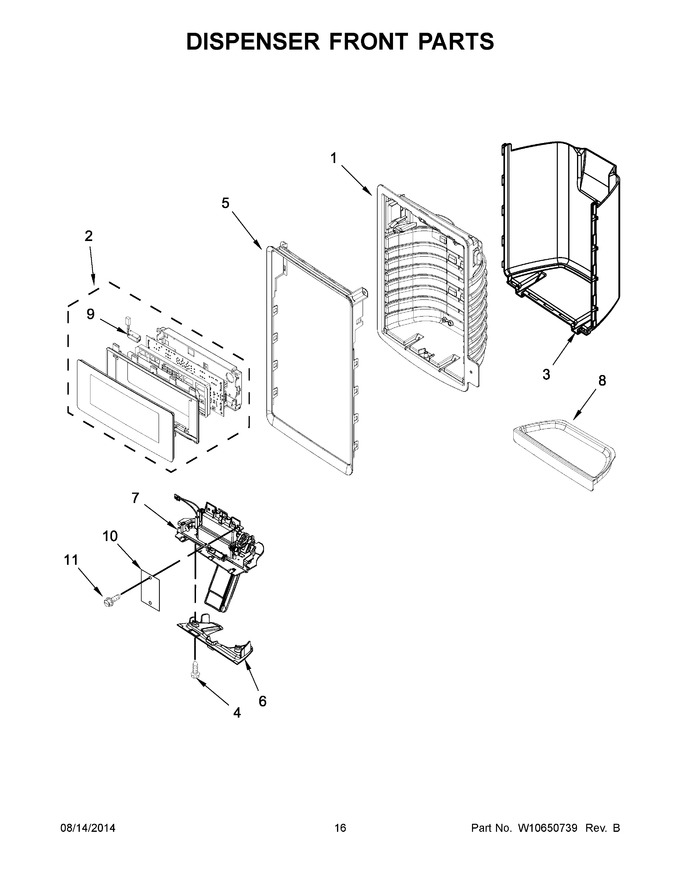

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10864268		Assembly, User Interface (black)   (Replaces: W10590854)				$ 409.59
3	W10427126		Wall, Dispenser False (white)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
5	W10587907		Ring, Trim (white)				$ 29.12
6	W10560985		Cover, Separator				$ 86.86
7	N/P		Assembly, Separator		Appelez-nous	-
8	W10322872		Tray, Drip (white)		Appelez-nous	-
9	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
10	W10572633		Shield, Separator		Appelez-nous	-
11	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 11.36
2A	W10865879		Assembly, User Interface (stainless)   (Replaces: W10590852)				$ 527.12
3A	W10427119		Wall, Dispenser False (black)		Appelez-nous	-
3B	W10703753		Wall, Dispenser False (grey)   (Replaces: W10427120)		Appelez-nous	-
5A	W10587908		Ring, Trim (black)				$ 47.22
5B	W10587909		Ring, Trim (grey)				$ 91.07
8A	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 58.53
8B	W10410105		Tray, Drip (grey)				$ 104.16

    View Diagram in Separate Window       Print Part List
