SELECT A DIAGRAM

01 - Cover Sheet

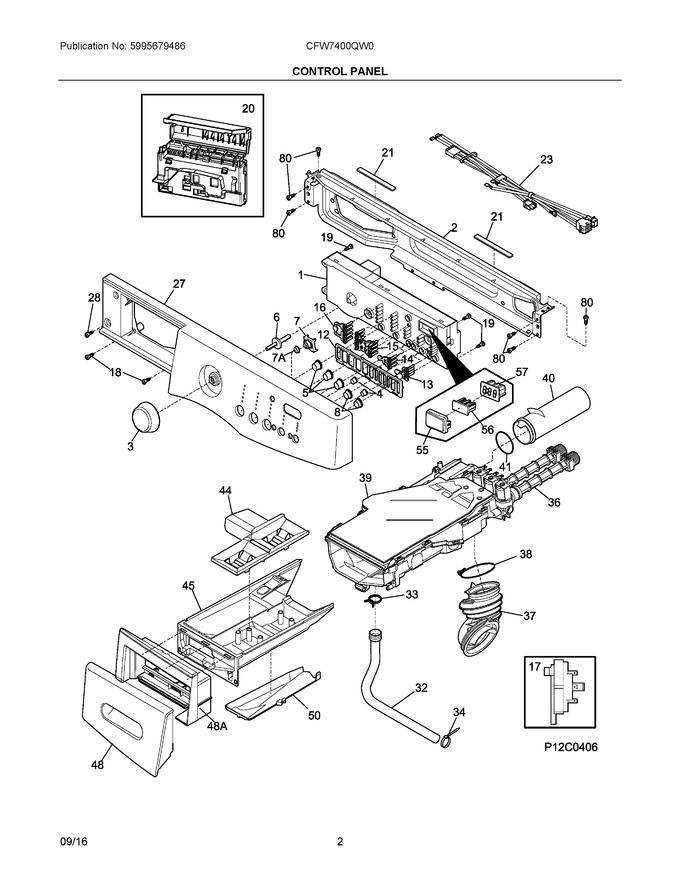

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137035252		Control Board, Pc W/housing		Appelez-nous	-
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	137314625		Knob, Control				$ 53.19
4	134618213		Control Board, Motor   (Replaces: 134618211)			Immediately	$ 344.60
5	137314725		Push Button, Round #3, 12				$ 29.66
6	134347700		Pin, Program Knob				$ 19.74
7	134885100		Push Button, Round, #2		Appelez-nous	-
8	137314825		Push Button, Round #4				$ 35.12
12	137320500		Spring, Push Buttons				$ 30.29
13	134557500		Light Pipe, Start Group				$ 5.67
14	134557400		Light Pipe, Row Of 3				$ 6.67
15	134552800		Light Pipe, 5 X 4				$ 18.43
16	134600000		Light Pipe, Row Of 5				$ 18.43
17	134762010		Switch, Pressure				$ 47.38
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	131302901		Screw, 10-16 X 0.750				$ 5.51
20	137208014NH		Control Board, Main, Pc/w Housing   (Replaces: 137208012)				$ 312.47
21	134407900		Dampener, Vibration				$ 18.90
23	137288500		Harness, Wiring				$ 277.13
27	137313961		Panel, Dec Console, White		Appelez-nous	-
28	131205300		Screw, 10-16 X 0.750			Immediately	$ 13.44
32	134586500		Hose, Disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 22.37
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 11.81
36	134959340		Valve, Dispenser, Ntc/long Tube			Immediately	$ 180.74
37	134372300		Hose, Disp-to-tub			Immediately	$ 64.80
38	134372400		Clamp, Tub Hose				$ 71.66
39	134446140		Housing, Dispenser, Ntc Long Tube				$ 224.96
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 15.27
44	134370200		Cover, Dispenser			Immediately	$ 45.68
45	134370000		Drawer, Dispenser			Immediately	$ 82.34
48	137516112		Handle, Drawer				$ 74.95
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 424.70
55	137320700		Window, Digit Display				$ 32.03
56	134557300		Light Pipe, Digital Display				$ 19.06
57	134503300		Display, Digital				$ 52.24
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
48A	137314510		Frame, Drawer Handle			Immediately	$ 95.64
4A	137320825		Push Button, Round #1, 7				$ 29.51
7A	137360300		Cap, Button, Delay Start				$ 35.07
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 56.71

    View Diagram in Separate Window       Print Part List
