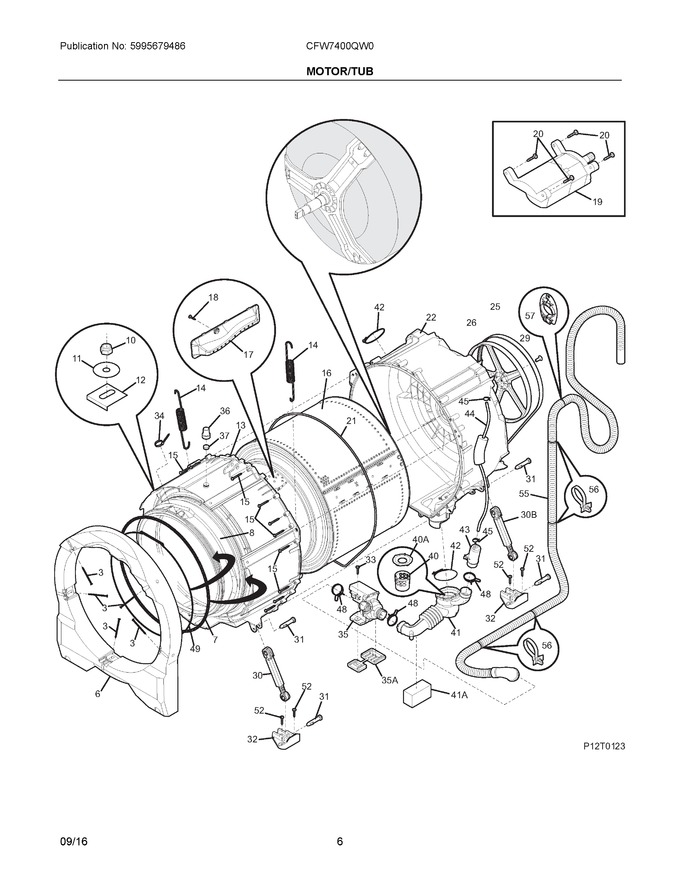

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt, Carriage, 1/4-20 X 2.60				$ 15.27
6	134362210		Counterweight, One Piece				$ 304.33
7	134365300		Spring, Bellows Clamp, Retainer				$ 68.51
8	137566001		Bellows, Door   (Replaces: 137045610)			Immediately	$ 226.95
10	137086500		Nut, Hex, 1/4-20 Unc-2b				$ 18.11
11	131276900		Washer, Bellville, Spring Steel				$ 24.10
12	134430600		Plate, Counterweight				$ 10.40
13	134955100		Shell, Tub, Front				$ 285.16
14	134957000		Spring Asmy, Suspension				$ 88.99
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 17.33
16	134950400		Drum Assy, Spin Basket				$ 433.10
17	134952702		Vane				$ 42.53
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	134638900		Motor, Induction, Controlled   (Replaces: 137248100)				$ 456.88
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 13.39
21	5304520351		O-ring, Tub   (Replaces: 134361900)				$ 109.24
22	134956210		Shell, Outer Tub, Rear, W/bearing, Seal				$ 497.83
25	134616700		Belt, Drive, Poly-v			Immediately	$ 66.83
26	137317100		Pulley, Drum Drive, Rear, Large				$ 60.74
29	134408400		Screw, 10.9 Class, M10 X 25 Mm				$ 19.69
30	5304491701		Shock Absorber, (hp) And Clips, Front   (Replaces: 137040900)			Immediately	$ 256.04
31	131268300		Pin, Shock Mtg.			Immediately	$ 14.18
32	134363200		Bracket, Shock Mtg.				$ 21.26
33	134637200		Screw, #10-16x1.125, Hexwasher Head				$ 15.75
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 11.81
35	137311900		Pump, Drain			Immediately	$ 250.43
36	137322400		Hose, Vent				$ 115.03
37	137322500		Screen, Vent				$ 33.39
40	134640200		Filter, Pump				$ 21.26
41	134639920		Hose, Coin Trap, Tub-to-pump			Immediately	$ 118.07
42	134737300		Clamp, Hose				$ 22.37
43	134636800		Chamber, Air				$ 32.81
44	137089000		Hose, Air Pressure   (Replaces: 134369900)				$ 143.33
45	137087500		Clamp, Hose				$ 11.25
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.46
49	134527100		Clamp, Bellows, Spring Held			Immediately	$ 49.50
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
55	137628100		Hose, Drain, One Piece				$ 123.70
56	137003500		Cable Tie, Push Mount				$ 7.09
57	134641100		Bracket, Drain Hose Mtg, Rear				$ 22.05
30B	5304491700		Shock Absorber, (ss) And Clips, Back   (Replaces: 137041000)			Immediately	$ 95.13
35A	134618100		Pad, Vibration, Pump Motor				$ 139.39
40A	134640300		Cover, Filter				$ 12.85
41A	137340800		Damper, Vibration, Foam				$ 24.76
NIA	137290700		Wiring Harness, Motor				$ 92.45
NIA	137110800		Cushion, Shock Bracket, Left Rear				$ 14.96
NIA	134261300		Clip, Drain Hose, Push-mount				$ 13.39
NIA	137385100		Ring, Anti-syphon				$ 15.75
