SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

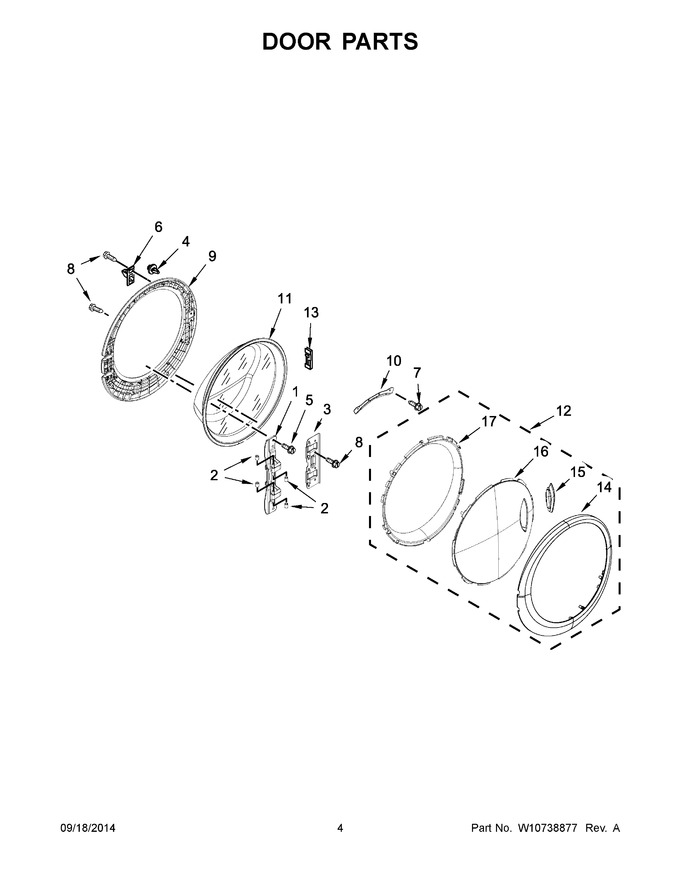

03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10208415		Hinge, Base   (Replaces: W10208415)			Immediately	$ 117.42
2	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
3	WPW10208419		Plate, Hinge Retainer   (Replaces: W10208419)				$ 81.85
4	8572266		Bumper, Door			Immediately	$ 11.17
5	W11661566		Screw   (Replaces: W10288126)				$ 14.03
6	WPW10488048		Strike, Door   (Replaces: W10488048)			Immediately	$ 7.89
7	W11230114		Screw   (Replaces: 8540513)				$ 13.28
8	WP8534022		Screw   (Replaces: 8534022)				$ 7.94
9	WPW10208275		Frame, Door Back Support   (Replaces: W10208275)				$ 268.99
10	W10295703		Clamp, Glass   (Replaces: W10003440)				$ 18.90
11	W10607723		Glass, Door				$ 129.91
12	W10208408		Door, Outer Assembly				$ 203.62
13	W10003430		Clamp, Glass Support		Appelez-nous	-
14	W11099174		Trim Ring, Outer Door   (Replaces: W10208410)				$ 356.12
15	W10208411		Door Handle				$ 85.41
16	W10208270		Screen, Door				$ 167.71
17	W10636276		Door Intermediate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
