SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

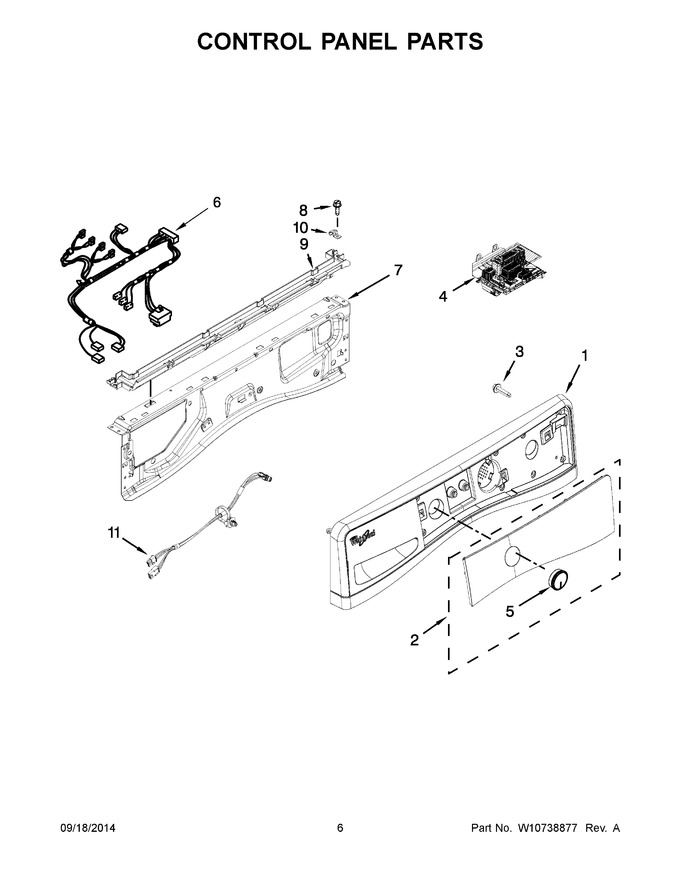

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10433195 | Assembly, Console (black) |
|
$ 306.80 | |||||
| 2 | W10750487 | Assembly, Iml (black) (Replaces: W10433096) |
|
$ 810.51 | |||||
| 3 | W10589828 | Screw |
|
$ 13.76 | |||||
| 4 | W11031839 | Control Unit, Appliance (Replaces: W10693611) |
|
$ 537.46 | |||||
| 5 | WPW10631127 | Assembly, Timer Knob (grey) (Replaces: W10631127) |
|
$ 37.76 | |||||
| 6 | W10586540 | Harness, Main (upper) |
|
$ 250.32 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.24 | |||||
| 11 | W10580186 | Harness, Ui |
|
$ 36.72 |
