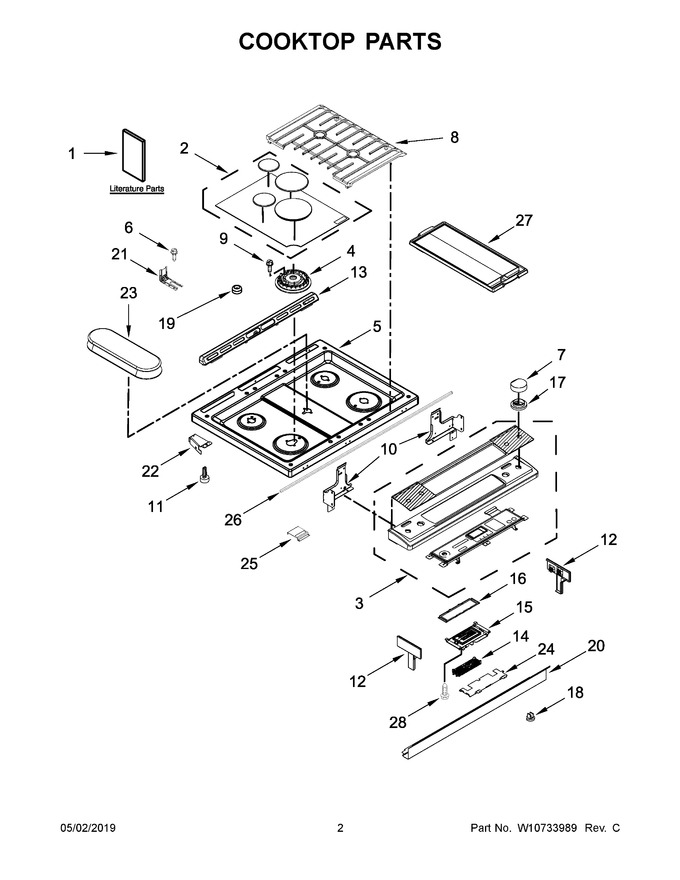

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Instructions, Installation		Appelez-nous	-
2	W11244067		Kit, Burner Cap (black)   (Replaces: W10432498)			Immediately	$ 212.58
3	W10911396		Console (black)   (Replaces: W10676654)		Appelez-nous	-
4	W10556380		Spreader, Flame (left Front)				$ 193.95
5	W10814033		Cooktop (black)   (Replaces: W10474663)		Appelez-nous	-
6	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
7	W10505765		Knob (black)		Appelez-nous	-
8	W11228127		Kit, Grate (black)   (Replaces: W10432535)				$ 364.92
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
10	W10289170		Support, Cooktop (left)				$ 30.05
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
12	W10557750		Endcap (black (left))				$ 142.98
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11297271		Control, Electronic (maxwell)   (Replaces: W11254196)				$ 513.10
15	WPW10603095		Assembly, Display   (Replaces: W10603095)			Immediately	$ 312.65
16	W10557780		Bracket , Control				$ 36.68
17	W10490680		Bezel (black)				$ 134.59
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 13.16
19	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
20	W10565660		Console Lower, Panel (black)		Appelez-nous	-
21	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 23.03
22	W10162253		Brace, Corner (left)				$ 74.13
23	W10556376		Spreader, Flame (fish) (center)				$ 321.09
24	W10558372		Bracket, Control				$ 25.10
25	W10752321		Shield, Keypad		Appelez-nous	-
26	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 22.73
27	W10432544		Griddle			Immediately	$ 66.43
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
10A	W10289169		Support, Cooktop (right)				$ 30.05
10B	W10598048		Bracket, Console (center)				$ 25.73
12A	W10557753		Endcap (black (right))		Appelez-nous	-
12B	W10557751		Endcap (stainless (left))				$ 168.85
12C	W10557754		Endcap (stainless (right))				$ 168.85
13A	W10577782		Trim, Vent (stainless)				$ 143.57
17A	W11028784		Bezel (stainless)   (Replaces: W10490679)			Immediately	$ 61.99
1A	W10665265		Use And Care Guide		Appelez-nous	-
1B	W10665227		Sheet, Tech		Appelez-nous	-
1C	W10665235		Wiring Diagram		Appelez-nous	-
1D	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1E	W10400067		Guide, Quick Start (french)		Appelez-nous	-
20A	W10565662		Console Lower, Panel (stainless)				$ 209.37
22A	W10162252		Brace, Corner (right)				$ 78.59
3A	W10911397		Console (stainless)   (Replaces: W10676656)			Immediately	$ 813.90
4A	W10556379		Spreader, Flame (left Rear)				$ 91.84
4B	W11238353		Spreader, Flame (right Front)   (Replaces: W10556378)				$ 126.38
4C	W10556377		Spreader, Flame (right Rear)				$ 88.62
5A	W10797526		Cooktop (stainless)   (Replaces: W10474665)				$ 584.80
7A	WPW10505764		Knob (stainless)   (Replaces: W10505764)				$ 127.72
NI	W11688421		Insulation, Vent Trim   (Replaces: W10701082)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10580229		Wire, Ground				$ 38.22
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 88.03
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 75.29
NI	W10911847		Harness, Main   (Replaces: W10580232)			Immediately	$ 242.31
